Step-up DC/DC converter

regulatednon-isolatedencapsulated

Short description

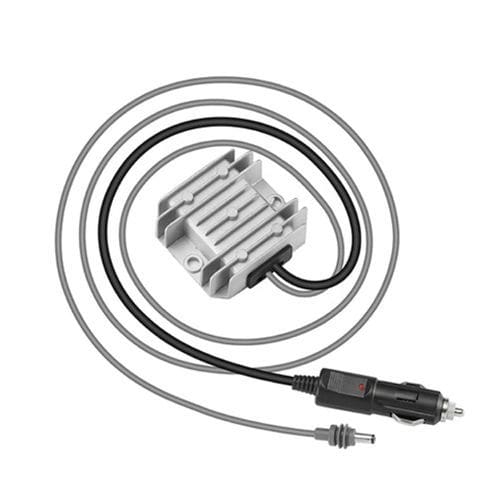

High-efficiency DC-DC converter for Starlink installations in vehicles and mobile applications. Includes cigarette lighter plug and a 3 m DC cable with 5.5×2.1 mm male connector.

Key points

• Input voltage: nominal DC 12V (page lists ranges 10V–28V and 10V–36V in different sections)
• Output voltage: DC 30V ±0.25V
• Output current / power: up to 3.5A / 105W (variant noted 1A–3.5A)
• Dimensions: 66 × 57 × 23 mm (1A–3.5A variant)
• Weight: ~0.2 kg
• Certifications: CE / FCC / ROHS

Features

• Synchronous rectification topology for improved conversion efficiency
• Internal capacitance filter designed for high-temperature operation
• Organic silicone encapsulation
• Integrated chip protections: over-temperature and overcurrent protection
• Shock-, drop-, moisture- and dust-resistant construction
• Efficiency reported: 90% (table) / up to 96% (feature claim)
• Non-isolated input-to-output design
• Ingress protection: IP67

Attention / Warnings

• Follow label instructions during installation; do not reverse polarity (positive/negative)
• Do not connect input and output in reverse; this may damage the converter
• Ensure connected load does not exceed the converter's rated power

Table (extracted values)
Product Name : 12V DC to 30V DC Converter
Size : 66 × 57 × 23 mm
Product image : included on product page
Output current : 3.5A
Output power : 105W
Weight : 0.2 kg
Input voltage : DC12V (10V–36V and 10V–28V ranges shown in different sections)
Transfer efficiency : 90% (table) / 96% (feature block)
Output voltage : DC30V ±0.25V
Overheating protection : 150℃
Working temperature : -20℃ to 85℃
Water Proof : IP67

Technical specifications

• Input voltage range (reported on page): DC12V nominal; ranges shown 10V–28V and 10V–36V
• Output voltage: DC30V ±0.25V
• Output current: up to 3.5A (variant specific: 1A–3.5A)
• Output power: 105W
• Dimensions: 66 × 57 × 23 mm (1A–3.5A variant)
• Weight: ~0.2 kg
• Efficiency: 90% (table) / up to 96% (feature claim)
• Protections: over-temperature (150℃), overcurrent protection (integrated chip protection)
• Construction: synchronous rectification, internal capacitor filter, organic silicone encapsulation
• Isolation: non-isolated between input and output
• Ingress protection: IP67 (waterproof)
• Operating temperature: -20℃ to 85℃
• Certifications: CE, FCC, ROHS
