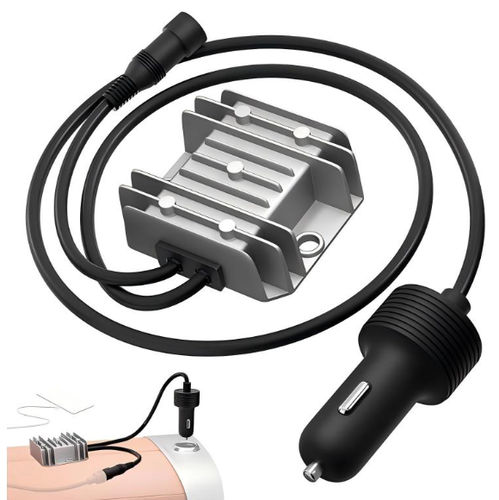

Step-up DC/DC converter Starlink Mini

regulatednon-isolatedencapsulated

Product overview
The Starlink Mini Cable Car Adapter is a DC-DC boost converter designed to supply 30V DC from 12V vehicle or cable-car power sources for Starlink Mini and similar systems. Nominal output: 30V ±0.25V, up to 3.5A (105W). Compact rugged enclosure: 66×57×23 mm, weight ~0.2 kg, IP67-rated.

Key features

• Synchronous rectification topology for high conversion efficiency
• Internal resistance-capacitor filter for high-temperature endurance
• Organic silicone potting for component protection
• Integrated chip protection: over-temperature and over-current shutdown
• Ruggedized: anti-shock, anti-drop, moisture and dust resistant
• High efficiency: specified 96% in feature list and 90% in specification table
• Non-isolated input-output topology
• IP67 waterproof rating

Specifications

• Product name: Starlink Mini Cable Car Adapter / 12V DC to 30V DC Converter
• Input voltage range: DC12V (documented ranges: 10V–28V and 10V–36V)
• Output voltage: DC30V ±0.25V
• Output current: up to 3.5A
• Output power: 105W
• Size: 66 × 57 × 23 mm
• Weight: ~0.2 kg
• Efficiency: listed as 96% (features) and 90% (table)
• Overheating protection threshold: 150°C
• Operating temperature: -20°C to 85°C
• Topology: synchronous rectification, non-isolated

Installation & warnings

• Follow label polarity and wiring instructions exactly; reversing positive/negative can damage the module and connected equipment.
• Do not connect input and output in reverse; reverse connection can cause permanent failure.
• Ensure connected load power does not exceed the converter’s maximum ratings (105W / 3.5A).
• Allow adequate ventilation and mounting to avoid sustained overheating; unit includes thermal protection.

Compliance & environment

• Certificates: CE, FCC, RoHS
• Ingress protection: IP67 (waterproof)
• Designed for mobile and outdoor installations where vibration and moisture resistance are required
