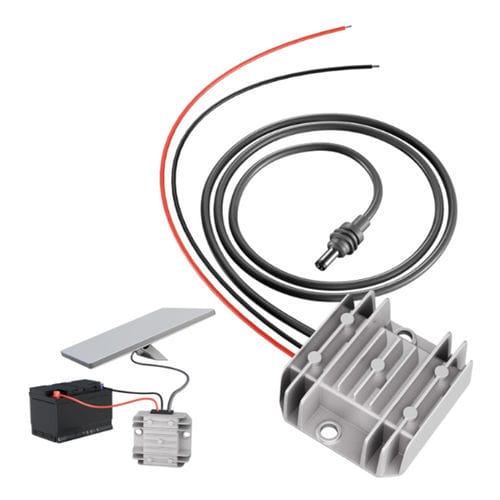

Step-up DC/DC converter Starlink Mini

regulatednon-isolatedencapsulated

Product overview
Step-up DC-DC converter adapter designed to power Starlink Mini from vehicle or other low-voltage DC sources. Converts nominal 12V (range 9V–28V) input to regulated DC30V ±0.25V output, supporting up to 3.5A. Non-isolated topology with organic silicone encapsulation and IP67-rated enclosure for protection against shock, moisture and dust.

Key specifications (summary)
Input voltage: DC12V (9V–28V)
Output voltage: DC30V ±0.25V
Output current: 1A–3.5A (model dependent; example: 3.5A)
Output power: up to 105W (example)
Size: 66 × 57 × 22 mm
Weight: 0.1 kg
Certifications: CE, FCC, RoHS

Features

• Synchronous rectification technology for high conversion efficiency
• Internal RC filter (resistance + capacitor) with high temperature tolerance
• Organic silicone encapsulation for mechanical protection
• Smart chip protection: over-temperature and overcurrent protection
• Shock-, drop-, moisture- and dust-resistant construction
• High efficiency: listed values include 90% transfer efficiency and up to 96% conversion efficiency
• Non-isolated input-output design
• Ingress protection: IP67

Attention / Handling

• Observe label polarity during installation; do not reverse positive and negative connections.
• Do not connect input and output in reverse; this may cause permanent damage.
• Ensure connected load power does not exceed the converter's rated maximum.

Table - detailed product data
Product name: 12V DC to 30V DC converter adapter for Starlink Mini
Size: 66 × 57 × 22 mm
Output current: example listing 3.5A
Output power: 105W (example)
Weight: 0.1 kg
Input voltage: DC12V (9V–28V)
Transfer efficiency: 90% (listed)
Output voltage: DC30V ±0.25V
Overheat protection threshold: 150℃
Operating temperature: -20℃ to 85℃
Ingress protection: IP67

Technical specifications

• Model family: Starlink Mini DC converter adapter
• Input voltage range: DC 9V–28V (nominal 12V)
• Output voltage: DC30V ±0.25V
• Output current: up to 3.5A (example)
• Maximum output power: 105W (example)
• Size: 66 × 57 × 22 mm
• Weight: 0.1 kg
• Transfer efficiency (listed): 90%
• Conversion efficiency (listed): up to 96%
• Overheat protection threshold: 150℃
• Operating temperature range: -20℃ to 85℃
• Ingress protection: IP67
• Isolation: non-isolated (input and output not isolated)
• Protection features: over-temperature protection, overcurrent protection, smart chip protection
• Construction: organic silicone encapsulation; shock/drop/moisture/dust resistant
• Certifications: CE, FCC, RoHS
