Jumper cable GTX102 series

Product Description

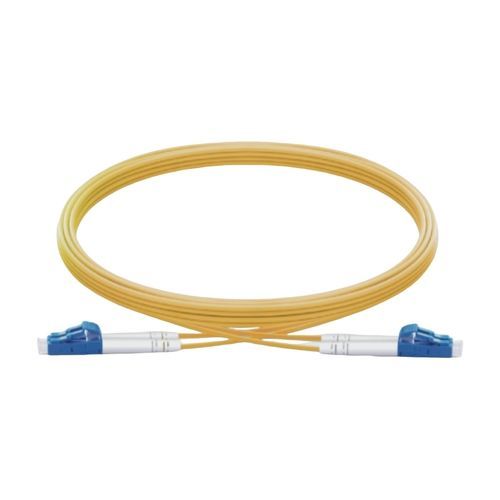

The GTX102 dual‑core 2.0 mm fibre optic patch cord is a compact figure‑eight jumper designed for reliable optical connections in industrial and data centre environments. It supports single‑mode (UPC/APC) and multimode (OM2/OM3/OM4) grades and is available with LC, SC, FC or ST connector endfaces. Jacket options include PVC or LSOH/FRNC to suit different installation safety requirements.

Product Features

• Precision connector design with very low insertion loss and return loss
• Connector options: LC, SC, FC, ST; endface polish UPC or APC for single‑mode
• Dual‑core figure‑eight 2.0 mm cable for compact routing and easy handling
• Jacket materials: PVC for general use or LSOH/FRNC for fire‑sensitive installations
• Available in multimode grades OM2/OM3/OM4 and single‑mode variants

Product Performance

• Typical insertion loss: 0.2 dB
• Typical return loss: ≥60 dB (APC); ≥50 dB (UPC)
• Operating temperature: -40 °C to +75 °C
• Storage temperature: -50 °C to +85 °C

Order Information
Product Model | Product Description | Color | Unit
GTX102 - ULCB1DULC - ZL01M0 | LC - LC multimode OM2 dual‑core 2.0 optical fibre patch cord, FRNC/LSOH outer sheath, 1 meter | Yellow | 1PC
GTX102 - ULCB1DULC - ZL02M0 | LC - LC multimode OM2 dual‑core 2.0 optical fibre patch cord, FRNC/LSOH outer sheath, 2 meters | Orange | 1PC
GTX102 - ULC0M3ULC - ZL03M0 | LC - LC multimode OM3 dual‑core 2.0 optical fibre patch cord, FRNC/LSOH outer sheath, 3 meters | Water blue | 1PC
GTX102 - ULC0M4ULC - ZL05M0 | LC - LC multimode OM4 dual‑core 2.0 optical fibre patch cord, FRNC/LSOH outer sheath, 5 meters | Purple | 1PC

Product Advantages

• Cost‑effective complement to copper in hybrid infrastructures
• Consistent optical performance with precision connector terminations
• Plug‑and‑play patching simplifies deployment and maintenance

Use Scenarios

• Enterprise network cabinets and patch‑panel to switch connections
• Data centre and hybrid copper–fibre backbones
• Workstation to wall outlet links and rapid reconfiguration tasks

FAQ (selected)

• Materials — Single‑mode or multimode optical fibre with PVC or LSOH/FRNC outer jacket; precision connectors (LC/SC/FC/ST) with UPC or APC polish.
• Custom lengths/specifications — Custom lengths and specifications are supported on request.
• Installation — Plug‑and‑play assemblies require no special tools for standard connectorized installations.

Technical Specifications

• Model / Series: GTX102
• Cable type: Dual‑core figure‑eight optical jumper, 2.0 mm core diameter
• Connector types: LC, SC, FC, ST (single‑mode UPC/APC; multimode OM2/OM3/OM4)
• Typical insertion loss: 0.2 dB
• Typical return loss: ≥60 dB (APC), ≥50 dB (UPC)
• Jacket options: PVC or LSOH/FRNC
• Polarity: A‑B parallel wiring by default
• Operating temperature: -40 °C to +75 °C
• Storage temperature: -50 °C to +85 °C
• Typical applications: data centres, enterprise LAN patching, hybrid copper–fibre infrastructures, desk and cabinet connectivity
