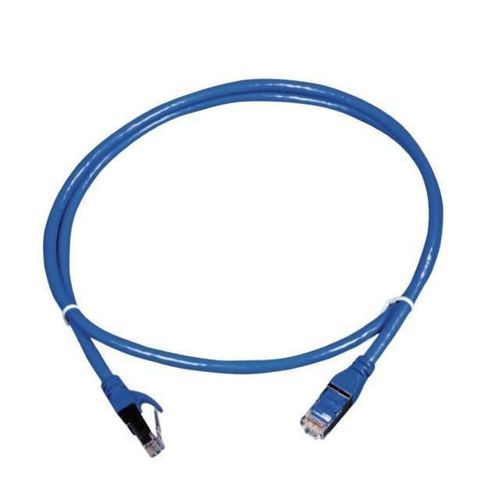

Jumper cable TTX6 series

Product Description
Used for transmitting voice, digital, audio/video, image and other signals. Supports Ethernet applications and is suitable for Ea-class channels per ISO/IEC 11801 and installation requirements in GB 50311. Connector performance meets ANSI/TIA-568.2-D for Cat.6; standard shielded RJ45 connector.

Product Features

• Compliant with Cat.6 / Cat.6A performance for Ethernet installations.
• Shielded RJ45 connectors on both ends with anti-reverse design.
• AWG28 multi-strand conductor for flexibility and improved fatigue resistance.
• Plug-and-play ready; flexible routing and simple installation.
• FRNC/LS0H jacket: flame retardant, low smoke, halogen-free.

Product Performance

• Frequency (physical bandwidth): 500 MHz / 250 MHz
• Characteristic impedance: 100 Ω
• Insertion cycles (durability): ≥800 insertions
• Temperature range: storage -40°C to +70°C; operation -10°C to +60°C

Order Information
Product Model | Product Description | Color | Unit
TTX60C-RRF4PZL-BU01M0 | RJ45-RJ45 Category 6 Shielded Patch Cord, AWG28, FRNC/LS0H, 1m | Gray | 1PC
TTX60C-RRF4PZL-BU02M0 | RJ45-RJ45 Category 6 Shielded Patch Cord, AWG28, FRNC/LS0H, 2m | Gray | 1PC
TTX60C-RRF4PZL-BU03M0 | RJ45-RJ45 Category 6 Shielded Patch Cord, AWG28, FRNC/LS0H, 3m | Gray | 1PC
TTX65B-RRF4PZL-BU01M0 | RJ45-RJ45 Shielded Cat 6A Patch Cord, AWG28, FRNC/LS0H, 1m | Blue | 1PC
TTX65B-RRF4PZL-BU02M0 | RJ45-RJ45 Shielded Cat 6A Patch Cord, AWG28, FRNC/LS0H, 2m | Blue | 1PC
TTX65B-RRF4PZL-BU03M0 | RJ45-RJ45 Shielded Cat 6A Patch Cord, AWG28, FRNC/LS0H, 3m | Blue | 1PC

Note
FRNC/LS0H = Flame Retardant, Non-Corrosive / Low Smoke, Halogen-Free. Flame retardancy complies with IEC 60332-1.

Technical specifications

• Designation / Model: Shielded Copper Jumper Cat.6A RJ45 AWG28
• Category: Cat.6 / Cat.6A patch/patch cord
• Connector: Standard shielded RJ45
• Conductor: AWG28, multi-strand
• Physical Bandwidth: 500 MHz / 250 MHz
• Characteristic Impedance: 100 Ω
• Durability: ≥800 insertions
• Jacket: FRNC / LS0H (flame retardant, low smoke, halogen-free)
• Operating temperature: -10°C to +60°C; Storage temperature: -40°C to +70°C
• Available lengths (examples): 1m, 2m, 3m
• Colors: Gray, Blue
• Standards: ISO/IEC 11801 (Ea-class channels), GB 50311, ANSI/TIA-568.2-D (Cat.6 connector requirements)
