Jumper cable TTX A

Product Description

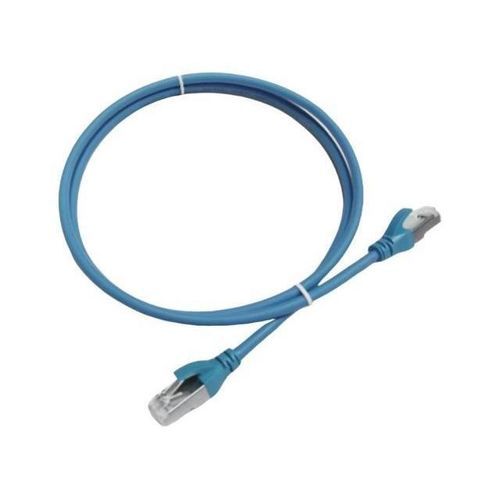

Shielded RJ45 patch cables for transmitting voice, digital, audio/video and image signals in Ethernet networks. Available for Cat.6A, Cat.6 and Cat.5e channel applications and compliant with common industry channel/connector standards. Standard shielded RJ45 connectors reduce EMI and provide stable links in environments requiring protected cabling.

Targeted Connectivity Solutions for Network Professionals
Designed for IT infrastructure engineers, system integrators and telecommunications specialists. These shielded jumpers support high-speed data transmission in data centers, telecom rooms and lab environments that require reduced electromagnetic interference and reliable plug-and-play connections.

Technical Specifications Ensuring Robust Signal Integrity
Characteristic impedance 100Ω with support for bandwidths up to 500 MHz (Cat.6A), 250 MHz (Cat.6) and 100 MHz (Cat.5e). Multi-strand copper conductors deliver flexibility and mechanical endurance. Optional FRNC/LSOH jackets provide enhanced flame retardant and low-smoke properties for indoor installations.

Product Features

• Category compatibility: Cat.6A / Cat.6 / Cat.5e; bandwidths: 500MHz / 250MHz / 100MHz.
• 100Ω characteristic impedance for matched channel performance.
• Shielded RJ45 connectors at both ends with flip-down design for EMI mitigation and easy routing.
• Multi-strand copper conductor for flexibility and resistance to repeated handling.
• Optional pull-out tail sleeve for simplified maintenance.
• Jacket options: FR/PVC or FRNC/LSOH (flame retardant / low smoke zero halogen).

Product Performance

• Physical Bandwidth: 500MHz / 250MHz / 100MHz
• Characteristic Impedance: 100Ω
• Durability: ≥800 plug/unplug cycles
• Temperature Range: Storage -40°C to +70°C; Operation -10°C to +60°C

Order Information
Product Model | Product Description | Color | Unit
TTX51A-RRF4PVL-GY01M0 | RJ45-RJ45 Shielded Patch Cable Cat.5e, FR/PVC, 1m | Gray | 1PC
TTX51A-RRF4PVL-GY02M0 | RJ45-RJ45 Shielded Patch Cable Cat.5e, FR/PVC, 2m | Gray | 1PC
TTX51A-RRF4PVL-GY03M0 | RJ45-RJ45 Shielded Patch Cable Cat.5e, FR/PVC, 3m | Gray | 1PC
TTX60A-RRF4PZL-BU01M0 | RJ45-RJ45 Shielded Patch Cable Cat.6, FRNC/LSOH, 1m | Blue | 1PC
TTX60A-RRF4PZL-BU02M0 | RJ45-RJ45 Shielded Patch Cable Cat.6, FRNC/LSOH, 2m | Blue | 1PC
TTX60A-RRF4PZL-BU03M0 | RJ45-RJ45 Shielded Patch Cable Cat.6, FRNC/LSOH, 3m | Blue | 1PC
TTX65A-RRF4PZL-BU01M0 | RJ45-RJ45 Shielded Patch Cable Cat.6A, FRNC/LSOH, 1m | Blue | 1PC
TTX65A-RRF4PZL-BU02M0 | RJ45-RJ45 Shielded Patch Cable Cat.6A, FRNC/LSOH, 2m | Blue | 1PC
TTX65A-RRF4PZL-BU03M0 | RJ45-RJ45 Shielded Patch Cable Cat.6A, FRNC/LSOH, 3m | Blue | 1PC
Note: FR/PVC = Flame Retardant / Polyvinyl Chloride. FRNC/LSOH = Flame Retardant Non-Corrosive / Low Smoke Zero Halogen (IEC 60332-1). For other lengths or custom options, consult sales or technical representatives.

Use Scenarios

• Data center interconnects: server-to-switch and patch-panel links where EMI control and compliance are critical.
• Laboratory testing and measurement setups requiring repeatable, low-interference connections.
• Telecommunications rooms and controlled networking closets needing shielded cabling for stable operation.

FAQ

• What materials are used? Multi-strand copper conductors with shielded RJ45 connectors; jacket options include FR/PVC and FRNC/LSOH.
• Can cables be customized? Yes. Available lengths, optional pull-out tail sleeves and jacket types. Contact sales for custom assemblies.
• Recommended installation conditions? Indoor controlled environments with EMI concerns (data centers, labs, industrial Ethernet). Follow ANSI/TIA and relevant local installation standards.

Technical Specifications

• Bandwidth: 500MHz / 250MHz / 100MHz (depending on category)
• Impedance: 100 Ω
• Durability: ≥800 plug/unplug cycles
• Temperature range: Storage -40°C to +70°C; Operation -10°C to +60°C
• Connector: Shielded RJ45 (flip-down) at both ends
• Conductor: Multi-strand copper
• Jacket options: FR/PVC or FRNC/LSOH
