Jumper cable GTX50 series

Product description
Fiber optic patch cords provide low insertion loss and high return loss for reliable optical connections. They are available in single-mode and multimode variants and support common 10 Gigabit networking environments. End-face contact options include UPC and APC.

Functional targeting for network integration

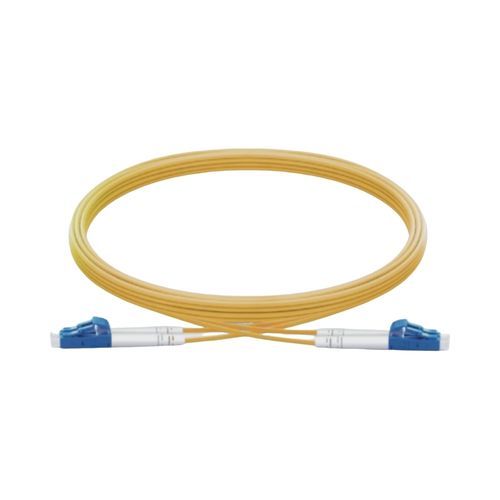

The Dual Core 3.0 Fibre Optic Jumper GTX502 is designed for network engineers, system integrators and telecom operators who require stable jumper cables for rack, panel and equipment interconnections. The standard configuration is LC-LC; related GTX501 series variants provide SC, FC and ST connectors. The FRNC/LSOH low-smoke, flame-retardant sheath and optional PVC jacket make the cable suitable for deployment inside data centers, server rooms and enterprise network closets.

Technical specifications ensuring signal integrity
Manufactured to deliver consistent low insertion loss and high return loss for both APC and UPC polish types. The FRNC/LSOH jacket balances fire safety and flexibility while preserving mechanical protection. The jumper performs across a wide temperature range and is color-coded by length to simplify identification and inventory management.

Industry applications and practical value
Ideal for technology companies, telecommunications networks and laboratories needing dependable fiber links for installation, testing and maintenance. The flame-retardant jacket helps meet building and safety codes in commercial and industrial sites. The jumper enables straightforward upgrades and interconnection between optical devices and supports environments where signal integrity and minimal downtime are essential.

Design and structural benefits
The GTX502 integrates dual-core fiber within an FRNC/LSOH sheath to provide low smoke emission and flame retardancy. Connector options across the product family (LC, SC, FC, ST) are engineered for tool-free mating and easy interchangeability. The PVC jacket variant offers additional mechanical protection where increased abrasion resistance or flexibility is required.

Enhanced performance and operational reliability
Stringent manufacturing controls yield precise insertion and return loss metrics. The jumper operates reliably from low to high ambient temperatures, suitable for controlled labs and industrial facilities. Ergonomic handling and straightforward termination reduce technician time during installation and maintenance.

Product features

• Stable fiber optic patch cord with low insertion loss and high return loss
• Available connector types: LC (standard on GTX502); related GTX501 series include SC, FC, ST
• Jacket options: FRNC/LSOH (flame retardant, low smoke, halogen-free) and PVC variants
• Color-coded lengths for easier inventory management

Product performance

• Insertion Loss (dB): 0.2
• Return Loss (dB): ≥60 (APC); ≥50 (UPC)
• Operating Temperature (°C): -40 ~ +75
• Storage Temperature (°C): -50 ~ +85

Order information
Product Model | Product Description | Color | Unit
GTX501-ULCB1dULC-ZL01M0 | LC-LC single-mode single-core 3.0 fiber optic patch cord, FRNC/LSOH outer sheath, 1 meter | Yellow | 1PC
GTX501-ULCOM2ULC-ZL02M0 | LC-LC multimode OM2 single-core 3.0 fiber optic patch cord, FRNC/LSOH outer jacket, 2 meters | Orange | 1PC
GTX501-ULCOM3ULC-ZL03M0 | LC-LC multimode OM3 single-core 3.0 fiber optic patch cord, FRNC/LSOH outer jacket, 3 meters | Water blue | 1PC
GTX501-ULCOM4ULC-ZL05M0 | LC-LC multimode OM4 single-core 3.0 fiber optic patch cord, FRNC/LSOH outer jacket, 5 meters | Purple | 1PC

Note: FRNC/LSOH = Flame Retardant, Non-Corrosive / Low Smoke, Halogen-Free. For other lengths or connector combinations, consult your sales or technical representative.

Use scenarios

• Laboratory and data center deployment: Validation of fiber link quality and system integrity in controlled environments. Low insertion loss and high return loss support accurate testing of high-speed components.
• Telecommunication network maintenance and upgrades: Field installation and replacement for reliable interconnects during network expansion and upkeep. Flame-retardant jackets help meet regulatory requirements.

FAQ

• What materials are used in the GTX502 jacket? The primary jacket is FRNC/LSOH (flame retardant, low smoke, halogen-free). Some variants use a PVC outer jacket for additional flexibility and mechanical protection.
• Can lengths and connectors be customized? Yes. Standard color-coded lengths include 1m (Yellow), 2m (Orange), 3m (Water Blue), and 5m (Purple). GTX502 standard connector is LC-LC; GTX501 family offers SC, FC and ST options.
• Recommended installation conditions? Operating range -40°C to +75°C. Low insertion loss (0.2 dB) and high return loss ensure stable connections during installation and maintenance.

Technical specifications

• Model / Series: GTX502 (related GTX501 series variants available)
• Connector types: LC (standard), optional SC / FC / ST in related variants
• Insertion loss: 0.2 dB
• Return loss: ≥60 dB (APC), ≥50 dB (UPC)
• Jacket: FRNC / LSOH (primary), PVC variant available
• Operating temperature: -40 °C to +75 °C
• Storage temperature: -50 °C to +85 °C
• Fiber type: dual-core (single-mode and multimode options in family)
• Typical applications: data centers, telecom networks, laboratories, field maintenance
• Color-coded lengths: 1m (Yellow), 2m (Orange), 3m (Water Blue), 5m (Purple)
