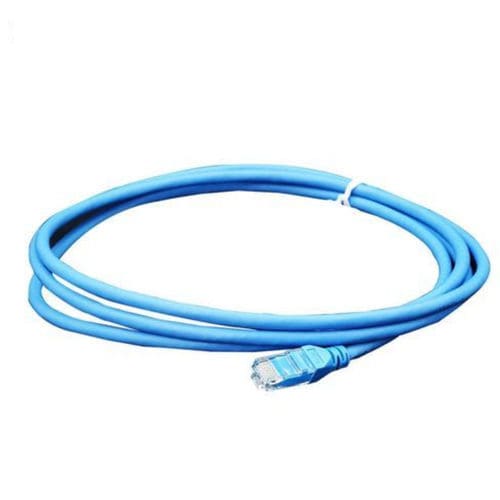

Jumper cable TTX series

Product Description
This unshielded copper jumper cable is engineered to support Cat5e, Cat6, and Cat6A networks, designed specifically for network cable manufacturers and system integrators requiring reliable patch connections with standardized RJ45 interfaces. Used for transmitting voice, digital, audio/video, and image signals, supporting various Ethernet applications, and suitable for applications specified by the GB 50311 and ISO/IEC 11801 standards for Ea-class, E-class, and D-class channels; meets the requirements specified by standards such as ANSI/TIA-568.2-D for Cat.6x/Cat.6/Cat.5e connectors. Standard RJ45 connector. Optional pull-tab structures and multiple jacket materials are available to facilitate installation and maintenance.

Technical Specifications Ensuring High Performance and Compliance
Constructed with injection-molded end sleeves to mitigate performance degradation from connector and cable movement. Anti-reverse protection on both ends guarantees connection stability over extensive use cycles—rated for a minimum of 800 insertions/removals. Supports bandwidths up to 500 MHz for Cat6A and 100 Ω characteristic impedance in accordance with ANSI/TIA-568.2-D. Jackets offered in flame-retardant PVC and low-smoke, halogen-free FRNC/LSOH variants. Color coding options (e.g., gray, red, yellow, orange) aid network management and identification.

Application in Enterprise Network Infrastructures and Data Centers
Designed for data center rack-to-rack interconnections, office conference room networking, temporary network expansions, LAN patching, network migration, and lab bench prototyping. Compliance with GB 50311 and ISO/IEC 11801 makes it suitable for structured cabling systems requiring Ea, E, and D class channel integrity. Complements fiber jumper cable offerings in hybrid copper-fiber deployments.

Product Features

• Meets Cat.6A / Cat.6 / Cat.5e standards; supports 500 MHz / 250 MHz / 100 MHz physical bandwidths.
• Injection-molded end sleeves reduce mechanical stress between cable and connector.
• Anti-reverse connector protection on both ends to prevent improper terminations.
• Jacket options: Flame-retardant PVC (FR/PVC) and FRNC/LSOH (low-smoke, halogen-free).
• Available colors (examples): gray, red, yellow, orange; optional pull-tab jumpers available for easier maintenance.

Product Performance

• Physical Bandwidth: 500 MHz / 250 MHz / 100 MHz
• Characteristic Impedance: 100 Ω
• Durability (plug/unplug cycles): ≥ 800 insertions/removals
• Storage Temperature: -40°C to +70°C
• Operating Temperature: -10°C to +60°C

Order Information (examples)
Product Model | Product Description | Color | Unit
TTX51A-RRU4PVL-GY01M0 | RJ45-RJ45 Unshielded Patch Cable Cat.5e, FR/PVC, 1m | Gray | 1PC
TTX51A-RRU4PVL-GY02M0 | RJ45-RJ45 Unshielded Patch Cable Cat.5e, FR/PVC, 2m | Gray | 1PC
TTX51A-RRU4PVL-GY03M0 | RJ45-RJ45 Unshielded Patch Cable Cat.5e, FR/PVC, 3m | Gray | 1PC
TTX60A-RRU4PZL-BU01M0 | RJ45-RJ45 Unshielded Patch Cable Cat.6, FRNC/LSOH, 1m | Blue | 1PC
TTX60A-RRU4PZL-BU02M0 | RJ45-RJ45 Unshielded Patch Cable Cat.6, FRNC/LSOH, 2m | Blue | 1PC
TTX60A-RRU4PZL-BU03M0 | RJ45-RJ45 Unshielded Patch Cable Cat.6, FRNC/LSOH, 3m | Blue | 1PC
TTX65A-RRU4PZL-BU01M0 | RJ45-RJ45 Unshielded Patch Cable Cat.6A, FRNC/LSOH, 1m | Blue | 1PC
TTX65A-RRU4PZL-BU02M0 | RJ45-RJ45 Unshielded Patch Cable Cat.6A, FRNC/LSOH, 2m | Blue | 1PC
TTX65A-RRU4PZL-BU03M0 | RJ45-RJ45 Unshielded Patch Cable Cat.6A, FRNC/LSOH, 3m | Blue | 1PC

Use Scenarios

• Data center rack interconnects in high-density environments — reliable, high-bandwidth patching between switches and servers.
• Enterprise LAN deployments, conference rooms, and temporary expansions — color-coded jumpers and optional pull-tabs simplify identification and maintenance.
• Hybrid copper-fiber infrastructures — complements fiber jumper cables for integrated network solutions.

caractéristiques / spécifications techniques

• Standards compliance: GB 50311, ISO/IEC 11801; ANSI/TIA-568.2-D referenced for connectors and channel compliance.
• Bandwidth: up to 500 MHz (Cat6A), supports Cat6 and Cat5e frequencies.
• Impedance: 100 Ω characteristic impedance.
• Mechanical durability: ≥800 insertion/removal cycles.
• Connector features: RJ45 with injection-molded end sleeves and anti-reverse protection on both ends.
• Jacket materials: FR/PVC (flame retardant PVC) or FRNC/LSOH (flame retardant, low smoke zero halogen).
• Colors available: gray (standard), optional red, yellow, orange, blue, etc.
• Typical lengths available: 1 m, 2 m, 3 m (custom lengths available on request).
• Operating temperature: -10°C to +60°C; storage temperature: -40°C to +70°C.
