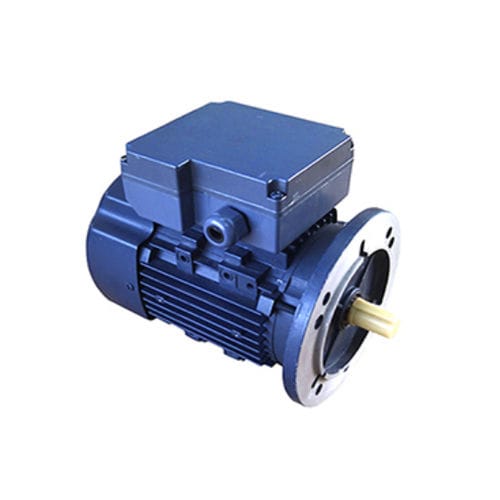

Asynchronous motor YYJ seriessingle-phase220 Valuminium
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, single-phase
- Voltage
- 220 V
- Configuration
- aluminium, with permanent capacitor
- Protection class
- IP55
- Number of poles
- 4-pole, 2-pole
- Cooling mechanism
- IC411
- Applications
- for pump, blower, for compressors
- Other characteristics
- custom
- Power
Max.: 1,500 W
(2.04 hp)Min.: 180 W
(0.24 hp)- Intensity
Max.: 10.5 A
Min.: 1.37 A
- Rotational speed
1,400 rpm, 2,800 rpm
(8,796.4594 rad.min-1, 17,592.9189 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
YYJ Series Single-Phase Capacitor Running Motors
GW single-phase capacitor running motors can be applied to fans blowers, pump, compressor and so on. The 1-phase capacitor motors are IEC standard design.
Catalogs
No catalogs are available for this product.
See all of Gw industry ‘s catalogsOther Gw industry products
IEC Standard Motors
