Induction motor YSJ series
three-phase380 V220 V

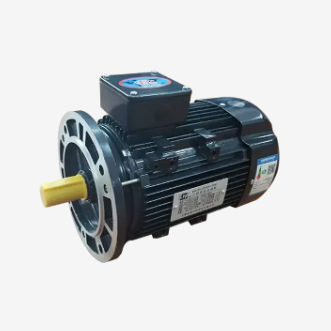

Induction motor - YSJ series - Gw industry - three-phase / 380 V / 220 V
Induction motor - YSJ series - Gw industry - three-phase / 380 V / 220 V
Induction motor - YSJ series - Gw industry - three-phase / 380 V / 220 V - image - 2
Induction motor - YSJ series - Gw industry - three-phase / 380 V / 220 V - image - 3
Induction motor - YSJ series - Gw industry - three-phase / 380 V / 220 V - image - 4
Induction motor - YSJ series - Gw industry - three-phase / 380 V / 220 V - image - 5
Add to favorites
Compare this product

Characteristics

Type
induction, three-phase
Voltage
380 V, 220 V
Configuration
aluminium
Protection class
IP55
Efficiency classes
IE4
Number of poles
4-pole, 2-pole, 6-pole, 8-pole
Cooling mechanism
IC411
Other characteristics
high-efficiency, IEC
Power

Max.: 7.5 kW
(10.2 hp)

Min.: 0.12 kW
(0.16 hp)

Intensity

Max.: 15.8 A

Min.: 0.45 A

Rotational speed

Max.: 2,910 rpm
(18,284.0692 rad.min-1)

Min.: 700 rpm
(4,398.2297 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

IE4 High Efficiency Three Phase Induction Motor · IEC standard design. · High efficiency, IE-4 and China Efficiency Class 2 (GB18613-2020). · High quality of starting performance. · Fit for full-load starting machine and equipment application. · The terminal box can meet the requirements of left out, top out and right out. Mounting:B3,B14,B34,B5,B35. · Voltage optional400、415V
