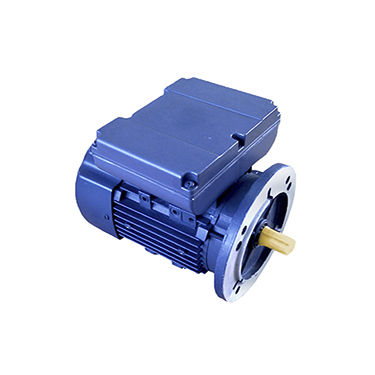

Asynchronous motor YLJ series
single-phase220 Valuminium

Asynchronous motor - YLJ series - Gw industry - single-phase / 220 V / aluminium
Asynchronous motor - YLJ series - Gw industry - single-phase / 220 V / aluminium
Asynchronous motor - YLJ series - Gw industry - single-phase / 220 V / aluminium - image - 2
Asynchronous motor - YLJ series - Gw industry - single-phase / 220 V / aluminium - image - 3
Asynchronous motor - YLJ series - Gw industry - single-phase / 220 V / aluminium - image - 4
Add to favorites
Compare this product

Characteristics

Type
asynchronous, single-phase
Voltage
220 V
Configuration
aluminium, with run and start capacitors
Protection class
IP55
Number of poles
4-pole, 2-pole
Cooling mechanism
IC411
Applications
for pump, blower, for compressors
Power

Max.: 2.2 kW
(2.99 hp)

Min.: 0.25 kW
(0.34 hp)

Intensity

Max.: 12.53 A

Min.: 2.05 A

Rotational speed

1,400 rpm, 1,420 rpm, 2,800 rpm, 2,830 rpm, 2,850 rpm
(8,796.4594 rad.min-1, 8,922.1231 rad.min-1, 17,592.9189 rad.min-1, 17,781.4144 rad.min-1, 17,907.0781 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

YLJ Series Single-Phase Capacitor-Start and Capacitor-Run Motors GW single-phase capacitor-start and capacitor-run motors can be applied to fan/blower, pump, compressor and small machine. The single-phase capacitor-start and capacitor-run motors have very good starting performance.
