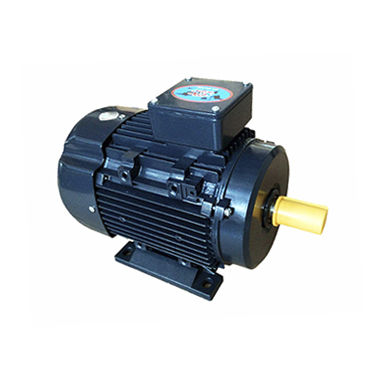

High-efficiency motor YXJ series
asynchronous3-phase460 V

High-efficiency motor - YXJ series - Gw industry - asynchronous / 3-phase / 460 V
High-efficiency motor - YXJ series - Gw industry - asynchronous / 3-phase / 460 V
High-efficiency motor - YXJ series - Gw industry - asynchronous / 3-phase / 460 V - image - 2
High-efficiency motor - YXJ series - Gw industry - asynchronous / 3-phase / 460 V - image - 3
High-efficiency motor - YXJ series - Gw industry - asynchronous / 3-phase / 460 V - image - 4
High-efficiency motor - YXJ series - Gw industry - asynchronous / 3-phase / 460 V - image - 5
High-efficiency motor - YXJ series - Gw industry - asynchronous / 3-phase / 460 V - image - 6
Add to favorites
Compare this product

Characteristics

Type
asynchronous, 3-phase
Voltage
460 V, 575 V, 380 V
Configuration
aluminium
Protection class
IP55
Number of poles
4-pole, 2-pole
Cooling mechanism
IC411
Other characteristics
NEMA, high-efficiency, IEC
Power

Min.: 0.18 kW
(0.24 hp)

Max.: 2.2 kW
(2.99 hp)

Rotational speed

Min.: 1,100 rpm
(6,911.5038 rad.min-1)

Max.: 3,500 rpm
(21,991.1486 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

GW IEC Metric YXJ Series Three-Phase High Efficiency Motors GW IEC standard three-phase high efficiency motors are high quality of starting performance. The 3-phase motors are high efficient and follow the standards of NEMA .
