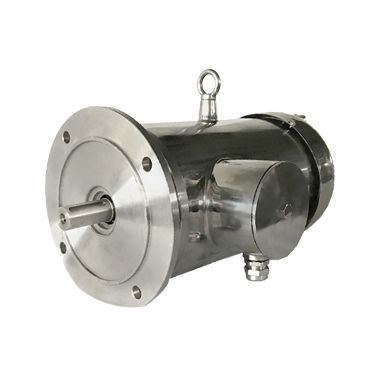

Asynchronous motor YSXL seriesthree-phase400 V380 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Voltage
- 400 V, 380 V
- Configuration
- stainless steel
- Protection class
- IP67, washdown
- Efficiency classes
- IE3
- Number of poles
- 4-pole, 2-pole
- Cooling mechanism
- IC411
- Applications
- for medical equipment, food
- Other characteristics
- IEC
- Power
Max.: 7.5 kW
(10.2 hp)Min.: 0.75 kW
(1.02 hp)- Intensity
Max.: 14.6 A
Min.: 1.45 A
- Rotational speed
1,500 rpm, 3,000 rpm
(9,424.778 rad.min-1, 18,849.5559 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
IE3 Stainless Steel Motor - 0.75~7.5 KW 3 Phase Washdown Duty - TEFC
This series is stainless steel three-phase motors with TEFC or TENV structures. YSXL motors with high efficiency conform to IEC standard and for 1Hp or up motors, the efficiency meets IE3 standard. These stainless motors without coating are widely used in food and medical machinery.
