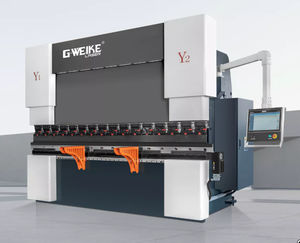

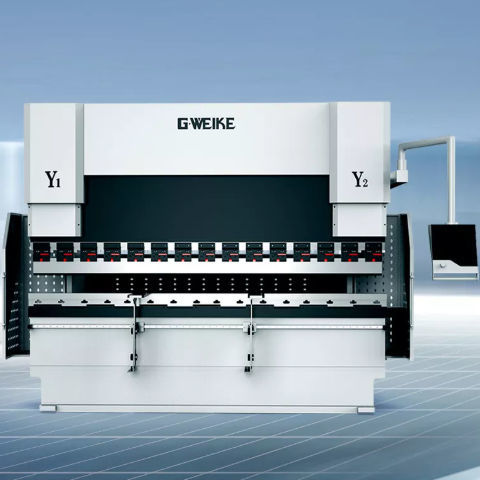

Servo-hydraulic press brake HG

CNCautomaticprecision

Product
CNC Press Brake Machine for precision sheet metal bending. Designed to deliver precise bends with a rigid structure and accurate synchronization control.

Highlights

• High stability: Frame optimized by finite element design and stress-relieved by annealing to ensure strong steel properties and structural stability.
• Precision assurance: Hydraulic servo system combined with international standard detection components provides high synchronization accuracy, ensuring bending precision and repeat positioning accuracy.
• Control system: Equipped with Netherlands DELEM DA-53T CNC, capable of automatic total material length calculation for bend sequences and 2D touch-based graphic programming.
• Sample display: Product page includes example bent parts and sample images demonstrating capabilities.

Applications

• Filing cabinets
• Electrical cabinets
• Kitchenware
• Curtain walls
• Door and elevator industry
• Household appliances
• Wind power and communications
• Shipbuilding

Technical Parameters (table)
Machine model | 10032 | 13032 | 17032 | 20032
Nominal pressure | 1000 | 1300 | 1700 | 2000
Working length | 3200 | 3200 | 3200 | 3200
Column spacing | 2600 | 2600 | 2600 | 2600
Maximum opening height | 480 | 480 | 480 | 480
Slider stroke | 200 | 200 | 200 | 200
Throat depth | 400 | 400 | 400 | 400
Bending Rapid down | 180 | 180 | 180 | 150
Work | 10 | 10 | 10 | 9
Return trip | 160 | 160 | 160 | 130
Main motor power (kW) | 7.5 | 11 | 15 | 18.5
X axis travel X (mm) | 500 | 500 | 500 | 500
X axis speed X (mm/min) | 300 | 300 | 300 | 300
R axis travel R (mm) | 200 | 200 | 200 | 200
R axis speed R (mm/s) | 60 | 60 | 60 | 60

Characteristics / Technical specifications

• Series: HG Series
• Nominal pressure: 1000 / 1300 / 1700 / 2000 (depending on model)
• Working length: 3200 mm
• Column spacing: 2600 mm
• Maximum opening height: 480 mm
• Slider stroke: 200 mm
• Throat depth: 400 mm
• Bending rapid down speed: 180 mm/s (most models) / 150 mm/s (20032)
• Work: 10 (most models) / 9 (20032)
• Return trip: 160 mm (most models) / 130 mm (20032)
• Main motor power: 7.5 / 11 / 15 / 18.5 kW (by model)
• X axis travel: 500 mm; X axis speed: 300 mm/min
• R axis travel: 200 mm; R axis speed: 60 mm/s
• Control system: Netherlands DELEM DA-53T CNC with 2D touch-based graphic programming and automatic material length calculation
