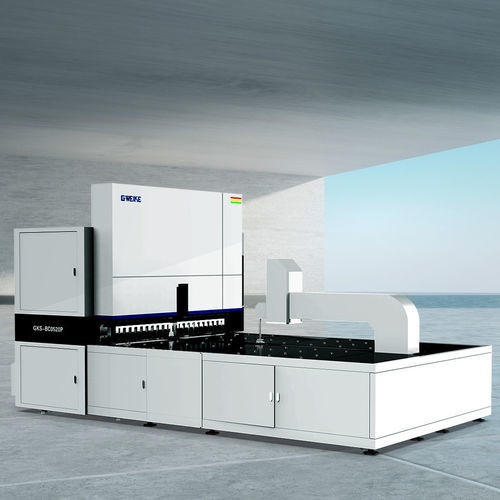

Hydraulic press brake GKS-BC0520Phigh-speedlargeautomatic
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Other characteristics
- automatic, high-speed, high-performance, large, fast, precise
- Press force
200,000 kN
- Folding length
2,100 mm
(82.7 in)- Engine power
Min.: 5 kW
(6.8 hp)Max.: 43 kW
(58.46 hp)- Machine length
5,470 mm
(215 in)- Machine width
3,200 mm
(125.98 in)- Machine height
2,850 mm
(112.2 in)- Bale weight
13,700 kg
(30,203 lb)
Description
Overview
Intelligent and efficient: can achieve speeds up to 0.2 seconds per bend, a 260% improvement over traditional bending machines. Automatic feeding and press-arm bending reduce human intervention, lowering labor intensity and enabling batch automated production, saving 3–4 operators.
Broader Applications
Large processing area and wide load-bearing range meet bending requirements for various workpieces, including arcs, hemming, return bends and closed shapes.
Labor-saving
Automatic feeding and bending workflows reduce human intervention, allow continuous batch production and automation, reduce labor intensity and operating costs by over 65%.
Low Maintenance Costs
Fixed universal bending tools remove the need to change upper and lower tools; absence of vulnerable parts reduces maintenance frequency and costs.
Sample Display
Sample parts and processed examples are available to demonstrate machine capabilities and typical outcomes.
Applications
Technical Parameters
Machine model: GKS-BC0520P
Feeding structure: Press Arm
Number of axes: Standard 13 axis
Maximum bending length: 2100mm
Maximum bending height: 200mm
Minimum bend single-side dimensions: 250mm
Bilateral minimum forming dimensions: 250mm
Minimum forming size of four sides: 250mm*300mm
Maximum sheet length: 2100mm
Maximum sheet width: 1500mm
Minimum arc radius: 6mm
Minimum continuous bending speed: 0.2S
Maximum feeding speed: 120m/min
Bending angle: 0-180°
Bending capacity: Carbon steel plate: 1.5mm / Stainless steel plate: 1.2mm / Aluminum plate: 2mm
The rated voltage: 380V AC
Peak power: About 43KW
Average power: About 5KW
Total machine weight: About 13.7 T
Dimensions: 5470mm*3200mm*2850mm
Characteristics / Technical Specifications
Intelligent and efficient: can achieve speeds up to 0.2 seconds per bend, a 260% improvement over traditional bending machines. Automatic feeding and press-arm bending reduce human intervention, lowering labor intensity and enabling batch automated production, saving 3–4 operators.
Broader Applications
Large processing area and wide load-bearing range meet bending requirements for various workpieces, including arcs, hemming, return bends and closed shapes.
Labor-saving
Automatic feeding and bending workflows reduce human intervention, allow continuous batch production and automation, reduce labor intensity and operating costs by over 65%.
Low Maintenance Costs
Fixed universal bending tools remove the need to change upper and lower tools; absence of vulnerable parts reduces maintenance frequency and costs.
Sample Display
Sample parts and processed examples are available to demonstrate machine capabilities and typical outcomes.
Applications
- Filing cabinets
- Electrical cabinets
- Kitchenware
- Curtain walls
- Door and elevator industry
- Household appliances
- Furniture
Technical Parameters
Machine model: GKS-BC0520P
Feeding structure: Press Arm
Number of axes: Standard 13 axis
Maximum bending length: 2100mm
Maximum bending height: 200mm
Minimum bend single-side dimensions: 250mm
Bilateral minimum forming dimensions: 250mm
Minimum forming size of four sides: 250mm*300mm
Maximum sheet length: 2100mm
Maximum sheet width: 1500mm
Minimum arc radius: 6mm
Minimum continuous bending speed: 0.2S
Maximum feeding speed: 120m/min
Bending angle: 0-180°
Bending capacity: Carbon steel plate: 1.5mm / Stainless steel plate: 1.2mm / Aluminum plate: 2mm
The rated voltage: 380V AC
Peak power: About 43KW
Average power: About 5KW
Total machine weight: About 13.7 T
Dimensions: 5470mm*3200mm*2850mm
Characteristics / Technical Specifications
- Machine model: GKS-BC0520P
- Feeding structure: Press Arm
- Number of axes: Standard 13 axis
- Maximum bending length: 2100mm
- Maximum bending height: 200mm
- Minimum bend single-side dimensions: 250mm
- Bilateral minimum forming dimensions: 250mm
- Minimum forming size of four sides: 250mm*300mm
- Maximum sheet length: 2100mm
- Maximum sheet width: 1500mm
- Minimum arc radius: 6mm
- Minimum continuous bending speed: 0.2S
- Maximum feeding speed: 120m/min
- Bending angle: 0-180°
- Bending capacity: Carbon steel plate: 1.5mm / Stainless steel plate: 1.2mm / Aluminum plate: 2mm
- The rated voltage: 380V AC
- Peak power: About 43KW
- Average power: About 5KW
- Total machine weight: About 13.7 T
- Dimensions: 5470mm*3200mm*2850mm
