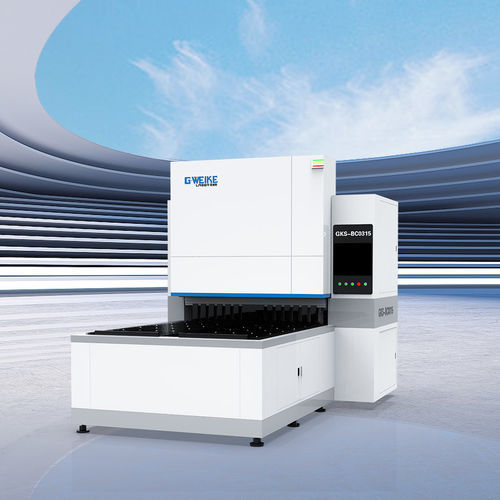

Hydraulic press brake GKS-BC0315

CNChigh-speedautomatic

Overview
GKS-BC0315 is a suction-type CNC panel bending machine designed for high-speed automated bending of sheet panels with a maximum bending length of 1500 mm. It features standard 10-axis control, automatic feeding and fixed universal tooling to support complex forming and high-volume batch production with reduced manual intervention.

Key advantages

• High-speed automated bending: minimum cycle 0.2 s per bend to increase throughput.
• 10-axis control for precise, complex forming operations.
• Automatic feeding and bending for continuous batch production and lower labor requirements.
• Fixed universal bending tools reduce setup time and tool changes.
• Capable of arcs, hemming, return bends and closed shapes with high consistency.

Performance highlights

• Minimum continuous bending speed: 0.2 s per bend.
• Maximum feeding speed: 120 m/min.
• Designed for high daily output (example: equivalent to bending over 5000 blades per day).

Applications

• Cabinet and electrical cabinet manufacturing
• Appliance panels and household appliances
• Furniture components
• Architectural sheet metal, curtain walls, doors, elevators
• Other batch-produced formed parts

Technical parameters

• Model: GKS-BC0315
• Feeding structure: Suction-cup type
• Number of axes: Standard 10 axis
• Maximum bending length: 1500 mm
• Maximum bending height: 170 mm
• Minimum single-side bend dimension: 230 mm
• Bilateral minimum forming dimension: 340 mm
• Minimum four-side forming size: 410 mm × 340 mm
• Maximum sheet length: 1500 mm
• Maximum sheet width: 1250 mm
• Minimum arc radius: 6 mm
• Minimum continuous bending speed: 0.2 s
• Maximum feeding speed: 120 m/min
• Bending angle range: 0–180°
• Bending capacity: Carbon steel 1.5 mm / Stainless steel 1.0 mm / Aluminum 2.0 mm
• Rated voltage: 380 V AC
• Peak power: approx. 40 kW
• Average power: approx. 2 kW
• Total machine weight: approx. 10.6 t
• Overall dimensions: 3780 mm × 2510 mm × 2790 mm
