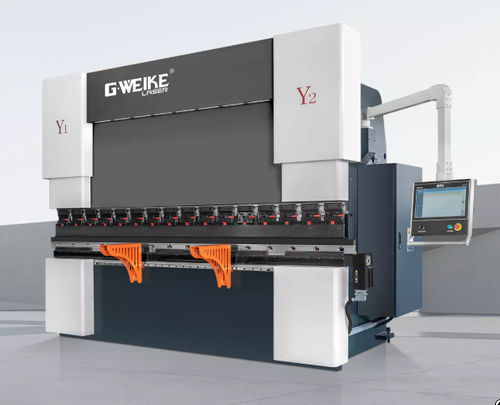

Hydraulic press brake GKS-20032

CNCautomaticprecision

Overview
GKS-20032 is a CNC hydraulic press brake equipped with the Dutch DELEM DA-53T CNC system, enabling automatic calculation of total workpiece length and 2D touch graphic programming for efficient bending preparation.

DA-53T CNC system features:

• Touch-screen 2D graphic programming for fast program setup.
• Full-touch control interface for intuitive operation.
• Improved operator ergonomics and productivity.

Structure and durability

• Thickened and widened backstop with reinforced ribs for increased rigidity.
• Side-mounted backgauge guide rail to resist deformation and maintain long-term accuracy.
• Double guide rail with single screw (25 mm) for faster transmission.
• Sheet-metal protective covers to extend component service life.

Light curtain protection (optional)
The machine can be fitted with DSP 5-point laser beam safety protection to enhance operator finger protection during tooling operations and improve on-site safety.

Industry applications
Suitable for manufacturing of filing cabinets, electrical cabinets, kitchenware, curtain wall panels, doors, elevators, home appliances, furniture, wind power components, communications equipment and shipbuilding parts.

Technical Parameters
Machine model: GKS-20032
Hydraulic oil tank capacity: 300L
Press capacity: 80T
Max bending length: 2500mm
Side distance: 2000mm
Gap depth: 3200mm
Opening height (speed): 180 mm/s
Bending rapid down: 200 mm/s
Return stroke: 50 mm
Return speed: 10 mm/s
Number of cylinders: 2 pcs
Motor power: 7.5KW

Features / Technical specifications

• Model: GKS-20032
• CNC system: DELEM DA-53T (2D touch graphic programming)
• Hydraulic oil tank capacity: 300L
• Press capacity: 80T
• Maximum bending length: 2500 mm
• Side distance: 2000 mm
• Gap depth: 3200 mm
• Opening height (speed): 180 mm/s
• Bending rapid down speed: 200 mm/s
• Return stroke: 50 mm
• Return speed: 10 mm/s
• Number of cylinders: 2 pcs
• Motor power: 7.5 KW
• Backstop: thickened and widened with reinforced ribs
• Backgauge guide rail: side-mounted technology for long-term accuracy
• Transmission: double guide rail single screw (25 mm)
• Optional safety: DSP 5-point laser light curtain protection
