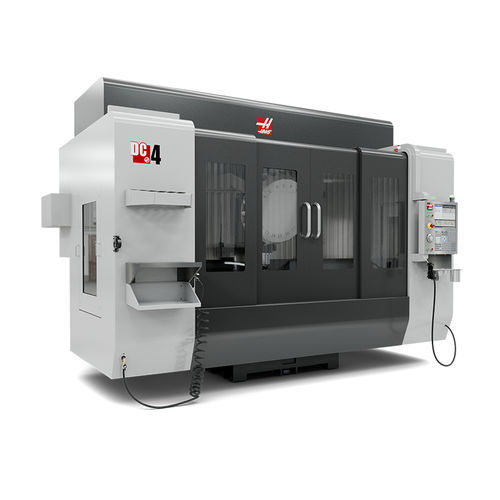

3-axis CNC machining center DC-4/40

verticalgantryfor steel

The DC-4/40 is a gantry-style drill/tap machine with 98.4" (2500 mm) of X-axis travel to accommodate long, narrow parts or high-density production setups. The machine’s gantry-style spindle head travels in the X and Z axes, while the table travels in Y, and is fully supported along its length to handle heavier loads. The machine is equipped with a 10,000-rpm 40-taper spindle and high-speed turret-style tool changer to minimize cut-to-cut times and shorten cycle times. Choose the optional 12,000-rpm or 15000-rpm spindle to cut production times even further. Well suited to the construction, automotive, and aviation industries, the DC-4/40 can process parts more than 8 ft (2.5 m) long and 1.6 ft (0.5 m) wide, in a variety of shapes and profiles, such as long extrusions, steel channel, angle iron, and pipe. Rear chip discharge with front chip flush
