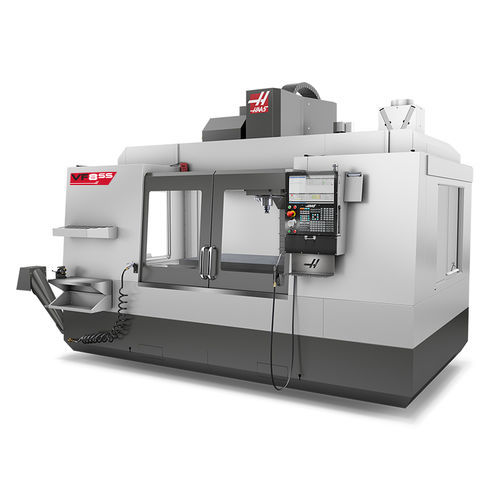

3-axis CNC machining center VF-8SSverticalBT 40HSK A-63
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, HSK A-63, CAT40
- Number of tool stations
- 30 tools
- Other characteristics
- high-speed, high-performance, high-productivity, direct-drive, with automatic tool changer
- X travel
1,626 mm
(64.02 in)- Y travel
1,016 mm
(40 in)- Z travel
762 mm
(30 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
22.4 kW
(30.46 hp)- Work feed X-axis
30.5 m/min
- Work feed Y-axis
30.5 m/min
- Work feed Z-axis
30.5 m/min
- Table load capacity
907 kg
(2,000 lb)- Tool weight (max)
5.4 kg
(11.9 lb)- Weight
11,250 kg
(24,802 lb)
Description
The Haas high-performance Super-Speed vertical machining centers provide the high spindle speeds, fast rapids, and quick tool changes necessary for high-volume production and reduced cycle times. Each SS machine features a 12,000-rpm, inline direct-drive spindle, an ultra-fast side-mount tool changer, and high-speed rapids on all axes. The VF-8SS offers 8" (203 mm) more Y-axis travel than the VF-6SS.
More X-axis travel
Fast rapids
