4-axis CNC machining center VP-5 Prismaticverticalrotating tableBT 40
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Structure
- rotating table
- Spindle mount
- BT 40, CAT40
- Number of tool stations
- 50 tools
- Other characteristics
- direct-drive, rigid, multi-spindle
- X travel
1,016 mm
(40 in)- Y travel
660 mm
(25.98 in)- Z travel
635 mm
(25 in)- Rotational speed
8,100 rpm
(50,894 rad.min-1)- Power
22.4 kW
(30.46 hp)- Work feed X-axis
18 m/min
- Work feed Y-axis
18 m/min
- Work feed Z-axis
18 m/min
- Table load capacity
1,588 kg
(3,501 lb)- Tool weight (max)
5.4 kg
(11.9 lb)- Tool-changing time
1.8 s
- Weight
6,967 kg
(15,359.61 lb)
Description

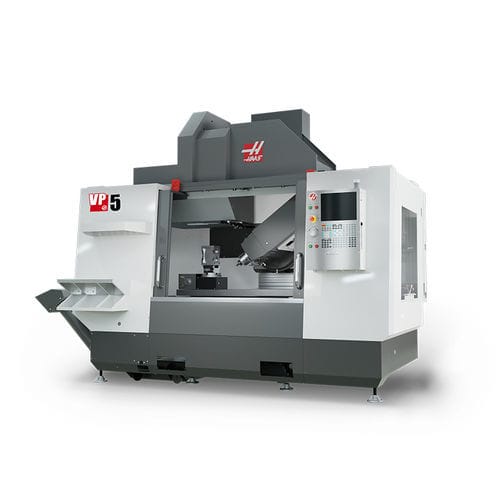

The Haas VP-5 vertical machining center combines the rigid structure of a mid-size vertical machining centers with an articulating spindle head to create a versatile machine for processing multi-sided prismatic parts .
Mill prismatic parts in a single setup
40-taper articulating spindle w/brake
+106° to -8º B-axis spindle rotation, interpolated or positioning
The VP-5’s articulating B-axis spindle head provides +106° to -8º of rotation, allowing you to machine prismatic parts in a single setup. Synchronize the B-axis motion with the X, Y, and Z axes for 3D interpolated machining, or engage the powerful B-axis brake for rigid 3+1 machining. For even more flexibility, add a high-speed C-axis or A-axis rotary for 5-side machining.
VIDEO
