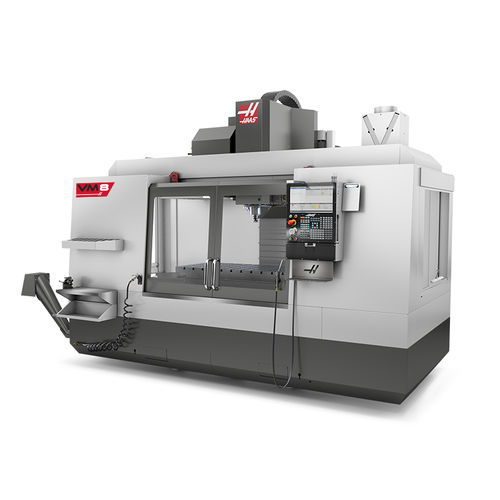

3-axis CNC machining center VM-8verticalBT 40HSK A-63
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Spindle mount
- BT 40, HSK A-63, CAT40
- Number of tool stations
- 30 tools
- Other characteristics
- high-performance, direct-drive, high-precision, high-rigidity, high-speed, with automatic tool changer
- X travel
1,626 mm
(64.02 in)- Y travel
1,016 mm
(40 in)- Z travel
762 mm
(30 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
22.4 kW
(30.46 hp)- Work feed X-axis
15.2 m/min
- Work feed Y-axis
15.2 m/min
- Work feed Z-axis
15.2 m/min
- Tool weight (max)
5.4 kg
(11.9 lb)- Tool-changing time
2.8 s
- Weight
11,250 kg
(24,802 lb)
Description
he Haas VM Series machines are high-performance VMCs that provide the accuracy, rigidity, and thermal stability required for mold making, tool & die work, and other high-precision industries. Each machine features a generous work cube, a multi-fixturing table, and a 12,000-rpm inline direct-drive spindle. Standard features include the Haas high-speed control with full look-ahead, a side-mount tool changer, a programmable coolant nozzle, an automatic air gun, and much more.
Multi-fixturing table
High-speed machining software
