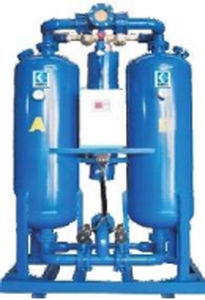

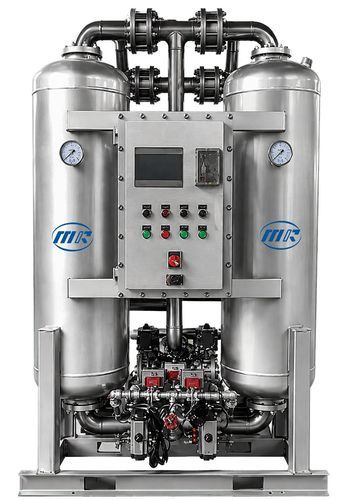

Desiccant compressed air dryer KXR series

by adsorption with heathigh-capacityhigh-performance

Product overview
The KXR Series heated-purge regenerative desiccant air dryer uses a portion of dry compressed air that is heated for desiccant regeneration, reducing purge consumption compared with heatless regeneration. Twin vessels alternate between adsorption and regeneration to provide continuous dry air supply.

How it works & product features

• Heated purge air restores the moisture‑removal capacity of the desiccant.
• Twin‑vessel design alternates adsorption and regeneration for uninterrupted operation.
• Lower purge-air consumption versus heatless designs.
• Available control options for cycle timing and heater management.

Main technical specifications

• Published models: 25 (KXR-5 to KXR-5000).
• Rated flow range: 0.7 to 510 m³/min (25 to 18,003 CFM).
• Heater power range: 0.9 to 170 kW.
• Connections: 1/2" up to DN350 depending on model.
• Weight range: 150 to 16,200 kg depending on model.

Representative models (key data)

• KXR-5 — 0.7 m³/min | Heater 0.9 kW | Connection 1/2" | Weight 150 kg
• KXR-1000 — 110 m³/min | Heater 37.5 kW | Connection DN150 | Weight 4,870 kg
• KXR-5000 — 510 m³/min | Heater 170 kW | Connection DN350 | Weight 16,200 kg

Applications

• Deep compressed-air drying and pretreatment for membrane systems.
• Instrument air and process-air duties in industrial plants.
