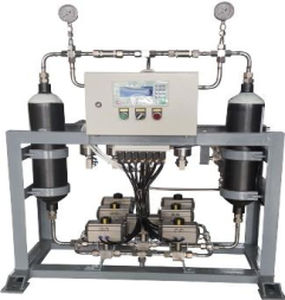

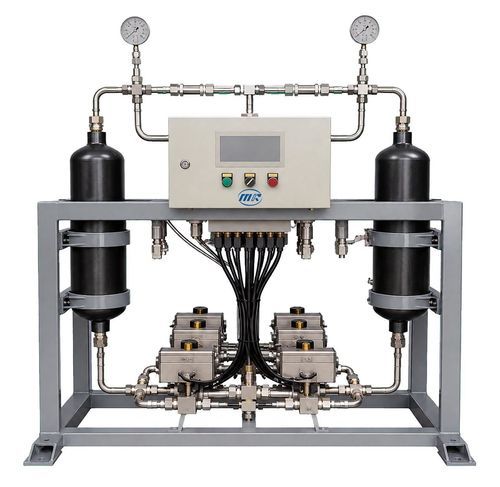

Desiccant compressed air dryer UXD series

heatless desiccanthigh-pressurefor high-pressure applications

Product Overview
The UXD series delivers twin‑tower, heatless adsorption drying designed for high‑pressure compressed air systems. Models are organized into three design‑pressure groups: 15 MPa, 25 MPa and 35 MPa.

How It Works & Product Features

• Twin vessels alternate between adsorption (drying) and heatless regeneration to maintain continuous dry air supply.
• Available design pressures: 15, 25 and 35 MPa to match high‑pressure applications.

Main Technical Specifications
Published models: 21
Design pressure groups: 15 / 25 / 35 MPa
Rated flow range: 96 – 810 Nm³/h
Connection sizes: 1/2" and 3/4"
Weight range: 100 – 560 kg

Models & Specifications
Model | Rated Flow (Nm³/h) | Connection | Design Pressure (MPa) | Weight (kg)
UXD-10/15 | 96 | 1/2" | 15 | 100
UXD-20/15 | 156 | 1/2" | 15 | 150
UXD-30/15 | 228 | 1/2" | 15 | 164
UXD-60/15 | 420 | 3/4" | 15 | 195
UXD-75/15 | 510 | 3/4" | 15 | 210
UXD-100/15 | 690 | 3/4" | 15 | 245
UXD-120/15 | 810 | 3/4" | 15 | 480
UXD-10/25 | 96 | 1/2" | 25 | 145
UXD-20/25 | 156 | 1/2" | 25 | 157
UXD-30/25 | 228 | 1/2" | 25 | 195
UXD-60/25 | 420 | 3/4" | 25 | 304
UXD-75/25 | 510 | 3/4" | 25 | 324
UXD-100/25 | 690 | 3/4" | 25 | 420
UXD-120/25 | 810 | 3/4" | 25 | 510
UXD-10/35 | 96 | 1/2" | 35 | 158
UXD-20/35 | 156 | 1/2" | 35 | 184
UXD-30/35 | 228 | 1/2" | 35 | 280
UXD-60/35 | 420 | 3/4" | 35 | 305
UXD-75/35 | 510 | 3/4" | 35 | 358
UXD-100/35 | 690 | 3/4" | 35 | 445
UXD-120/35 | 810 | 3/4" | 35 | 560

Applications
Designed for deep dehydration downstream of high‑pressure air compressors in industrial processes, gas transportation and any application requiring low dew point at elevated pressures.

Technical Features

• Twin‑tower heatless adsorption drying technology
• Design pressure groups: 15 MPa, 25 MPa, 35 MPa
• Published models: 21 (UXD series)
• Rated flow range: 96 – 810 Nm³/h
• Connection sizes: 1/2" and 3/4"
• Weight range: 100 – 560 kg
