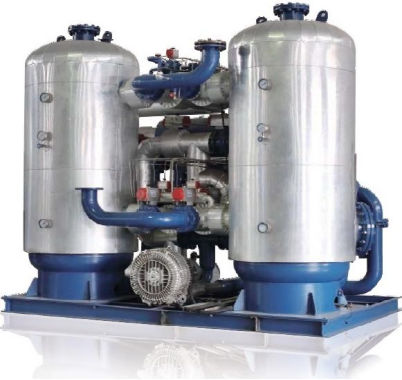

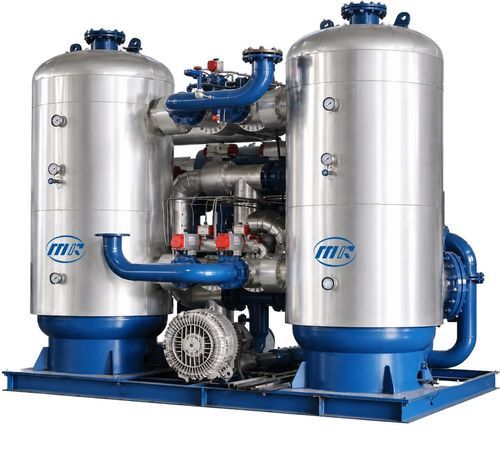

Desiccant compressed air dryer KXP series
by adsorption with heathigh-capacityblower purge

Desiccant compressed air dryer - KXP series - Hangzhou Mairui Gas Engineering Equipment Co., Ltd - by adsorption with heat / high-capacity / blower purge

Add to favorites

Compare this product

Go to the Hangzhou Mairui Gas Engineering Equipment Co., Ltd website for more information

Characteristics

Technology

desiccant, by adsorption with heat

Other characteristics

high-quality, high-performance, blower purge, high-capacity

Capacity

Min.: 1,380 m³/h
(48,734.24 ft³/h)

Max.: 30,000 m³/h
(1,059,440 ft³/h)

Working pressure

Min.: 0.7 MPa

Max.: 1 MPa

Motor power

Min.: 20 kW
(27.19 hp)

Max.: 400 kW
(543.85 hp)

Ambient temperature

Max.: 45 °C
(113 °F)

Dew point

-40 °C
(-40 °F)

Description

Product Overview
The KXP Series combines blower-heated regeneration with cooling and gas-liquid separation to eliminate process-air consumption during regeneration while delivering deep compressed-air drying for industrial applications.

How It Works & Product Features

Blower heating regenerates the desiccant without using process air.
Integrated cooling and gas-liquid separation complete the regeneration cycle and protect downstream equipment.

Models & Specifications (table)
Model | Rated Flow (m³/min) | Connection
KXP-200 | 23 | DN65
KXP-250 | 27 | DN80
KXP-300 | 34 | DN80
KXP-400 | 45 | DN100
KXP-500 | 55 | DN100
KXP-600 | 65 | DN125
KXP-800 | 87 | DN150
KXP-1000 | 110 | DN150
KXP-1200 | 130 | DN150
KXP-1500 | 160 | DN200
KXP-2000 | 210 | DN200

Applications
Designed for deep compressed-air drying and for pretreatment of feed air to membrane systems, instrument air and process-air duties in industrial installations.

Technical specifications

Series: KXP Series
Product type: Zero-purge blower-heated regenerative desiccant air dryer
Regeneration method: Blower heating
Regeneration cycle includes: blower heating, cooling and gas-liquid separation
Purpose: Deep compressed-air drying; feed pretreatment for membrane systems; instrument and process air
Published models: 11
Models (Model - Rated Flow (m³/min) - Connection): KXP-200 - 23 - DN65; KXP-250 - 27 - DN80; KXP-300 - 34 - DN80; KXP-400 - 45 - DN100; KXP-500 - 55 - DN100; KXP-600 - 65 - DN125; KXP-800 - 87 - DN150; KXP-1000 - 110 - DN150; KXP-1200 - 130 - DN150; KXP-1500 - 160 - DN200; KXP-2000 - 210 - DN200
