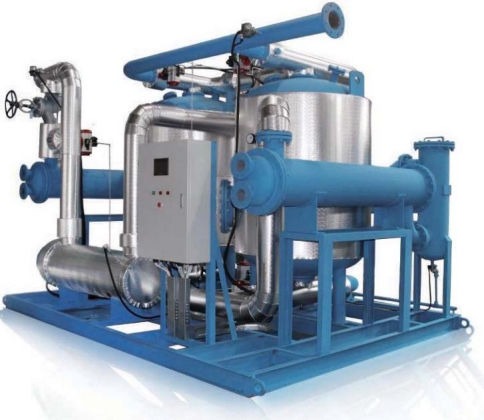

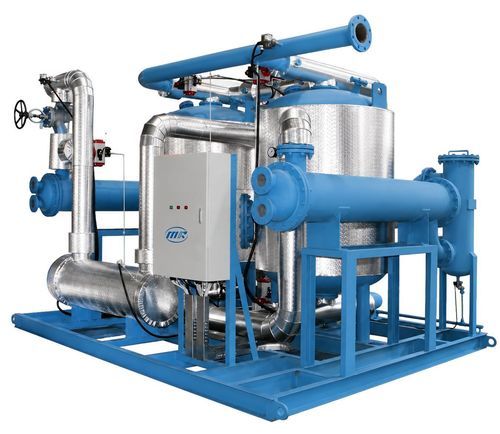

Desiccant compressed air dryer KXM series

heat-of-compressioninternally heatedhigh-performance

Product Overview
The KXM Series regenerative desiccant air dryer uses compressor discharge heat to regenerate the desiccant without purge air. Integrated coolers and gas-liquid separators provide cooling and condensate removal, enabling deep drying in systems with high compressor discharge temperatures.

How It Works & Product Features

• High-temperature compressor discharge air directly regenerates the desiccant (heat-of-compression regeneration), eliminating purge air losses.
• Integrated coolers and gas-liquid separators reduce temperature and separate condensate after regeneration.
• Continuous adsorption/regeneration cycles deliver stable dew point performance for demanding compressed-air applications.
• Available in multiple published models to adapt to different capacity requirements.

Main Technical Specifications
Published Models: 12

Models & Specifications

• KXM-500 — Power: 0.2 kW
• KXM-600 — Power: 0.2 kW
• KXM-800 — Power: 0.2 kW
• KXM-1000 — Power: 0.25 kW
• KXM-1200 — Power: 0.25 kW
• KXM-1500 — Power: 0.25 kW
• KXM-2000 — Power: 0.25 kW
• KXM-3000 — Power: 0.25 kW
• KXM-3500 — Power: 0.25 kW
• KXM-4000 — Power: 0.25 kW
• KXM-4500 — Power: 0.25 kW
• KXM-5000 — Power: 0.25 kW

Applications
Designed for compressed-air systems with high compressor discharge temperatures that require deep drying with no purge-air loss. Typical uses include industrial process air, pneumatic controls, paint booths and other moisture-sensitive applications.

Related Products

• KXD Heatless Dryer
• KXR Heated-Purge Dryer
• KXB Blower-Purge Dryer

Technical characteristics

• Series: KXM Series
• Regeneration method: High-temperature compressed air (heat-of-compression) for desiccant regeneration
• Cooling and moisture removal: Coolers and gas-liquid separators
• Published models: 12
• KXM-500 — Power: 0.2 kW
• KXM-600 — Power: 0.2 kW
• KXM-800 — Power: 0.2 kW
• KXM-1000 — Power: 0.25 kW
• KXM-1200 — Power: 0.25 kW
• KXM-1500 — Power: 0.25 kW
• KXM-2000 — Power: 0.25 kW
• KXM-3000 — Power: 0.25 kW
• KXM-3500 — Power: 0.25 kW
• KXM-4000 — Power: 0.25 kW
• KXM-4500 — Power: 0.25 kW
• KXM-5000 — Power: 0.25 kW
