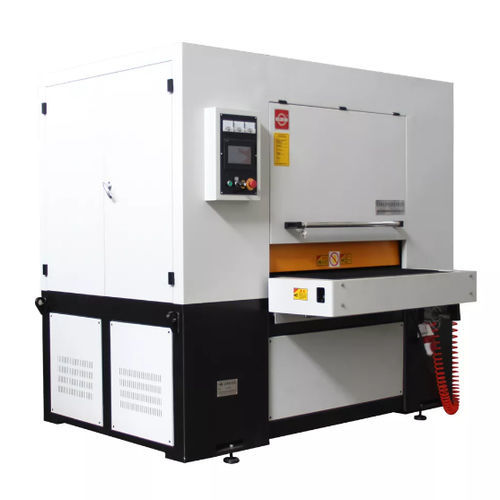

Belt sander SB1000-2B

stationaryelectricedge

In the plasma and flame cutting, the edge of the workpiece will produce slag and flash, and the SB1000-2B can be quickly cleaned with very abrasive material. This equipment can maintain the original dimensional accuracy unaffected and achieve a high quality uniform micro chamfering effect. Ideal parts: Most of metal material type Thcikness:2mm Minimum part size: 30 x 30 mm (steel) Machine characteristic overview: Conveyor feed through type, high efficiency, one pass for both deburring and edge rounding Alloy steel column grinding station + brush box station Two work stations can operate individually or together to meet remove slag requirement Standard magnetic conveyor table Straight forward and user-friendly operation Auxiliary LED lighting inside machine Small machine footprint Optional configuration Dry filtration barrel type dust collector with spark arrestor Technical Datasheet Working thickness 1000mm Conveyor feeding rate 0.5-5m/min Consumables alloy steel column + sand / scotch brite brush Machine opening 0-100mm Size of alloy steel column brush plate Dia. 8mm 70pcs Size of abrasive brush 35X55mm 70pcs Alloy steel column belt drive power 5.5KW
