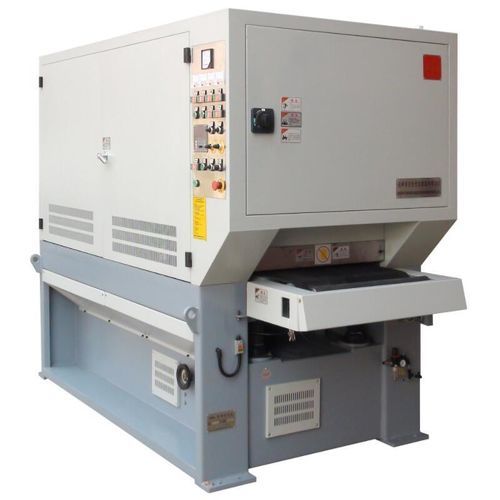

Belt sander SG1030-JS

stationaryelectricfor metal

Product overview
Introduced by 祥生公司, the SG1030-JS is designed for surface treatment of flat workpieces produced by laser cutting, punch blanking and material processing. It is suitable for removing scratches to achieve a consistent surface, creating a textured finish to improve subsequent paint adhesion, and for bulk deburring operations.

Equipment features

• Dry processing to reduce production and maintenance costs.
• Configured opening for pass-through batch processing, enabling simple and efficient operation.
• Four-column synchronized lifting worktable with heat-resistant conveyor belt.
• 祥生公司 patented wide-belt tracking control system.
• Requires use of a dust extraction system (requirement only; no contact provided on this page).
• Core high-speed rotating components fitted with imported bearings.

Customization and optional equipment
To meet different finishing requirements and delivery specifications, professional customization is available: multi-station belt or polishing-wheel modules for fine finishing; vacuum or magnetic worktables for small parts; multi-machine integrated precision sanding and polishing lines. Available belt widths: 630 mm, 1030 mm, 1300 mm, 1600 mm.

Consumables

• Wide abrasive belts in various grit sizes.

Suitable materials

• Stainless steel, non-ferrous metals, etc.

Specifications
Processing width: 1000 mm
Recommended thickness range: 0.8–70 mm
Feed speed: 2–9 m/min
Weight: 1800 kgs

Features / Technical specifications

• Model: SG1030-JS
• Processing width: 1000 mm
• Recommended thickness: 0.8–70 mm
• Feed speed: 2–9 m/min
• Machine weight: approx. 1800 kgs
• Working mode: Dry processing (requires compatible dust extraction)
• Structural features: Four-column synchronized lift, heat-resistant conveyor belt, wide-belt tracking control system
• Core components: High-speed rotating parts use imported bearings
• Options: Multi-station belt/polishing wheels, vacuum or magnetic worktable, multi-machine production line, selectable belt widths (630/1030/1300/1600 mm)
