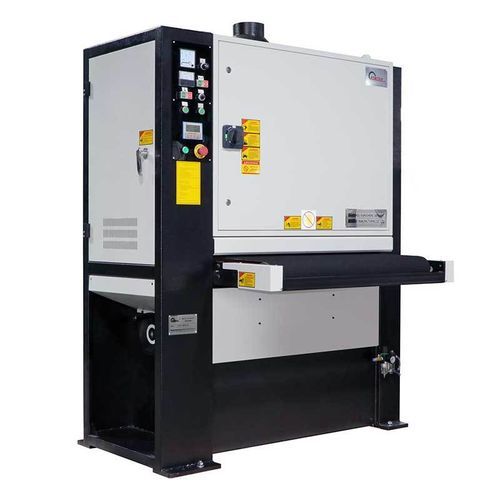

Belt sanding unit SG940-JS

Product description
SG940-JS is an economical wide abrasive belt sanding machine designed for general surface sanding tasks such as removal of deep scratches, surface finishing and oxide layer removal. It derives from a proven family of machines with a large installed base in industrial environments, offering simple operation and reliable performance.

Applications
General surface sanding: removing deep scratches, surface finishing, oxide layer removal, and similar surface preparation tasks.

Machine characteristic overview

• Dry operation, reducing production and maintenance costs and extending service life.
• Conveyor feed-through design for continuous, high-efficiency processing.
• Robust patented belt automatic tracking mechanism.
• Two-pillar lifting conveyor bed for accurate height adjustment.
• High-temperature resistant conveyor belt suitable for heavy-duty use.
• Motor mounted inside the machine frame for compact layout and protection.
• Straightforward, user-friendly operation for shop-floor use.
• Auxiliary LED lighting installed inside the machine for improved visibility.
• Internal dust collection hood to support extraction systems.

Optional configuration

• Multi-stage wide abrasive belt heads to achieve the required final surface finish.
• Magnetic or vacuum conveyor bed options to secure and process small parts.
• Available maximum working widths from 600 mm to 2100 mm to match production requirements.
• Integrated dust collector available as an option.

Ideal parts
Stainless steel, aluminum and all non-ferrous metals.

Machine specification
Maximum working width: 900 mm
Working thickness range: 0.5–70 mm
Minimum working length: 270 mm
Wide abrasive belt size: 1900 x 940 mm
Conveyor feeding rate: 2–11 m/min
Total power: 9 kW
Machine dimensions: 1650 x 1350 x 1850 mm
Machine weight: 1100 kg
Required dust extraction capacity: 3000 m³/h

Characteristics / Technical specifications

• Model: SG940-JS
• Maximum working width: 900 mm
• Working thickness range: 0.5–70 mm
• Minimum working length: 270 mm
• Wide abrasive belt size: 1900 x 940 mm
• Conveyor feeding rate: 2–11 m/min
• Total power: 9 kW
• Machine dimensions: 1650 x 1350 x 1850 mm
• Machine weight: 1100 kg
• Required dust extraction capacity: 3000 m³/h
