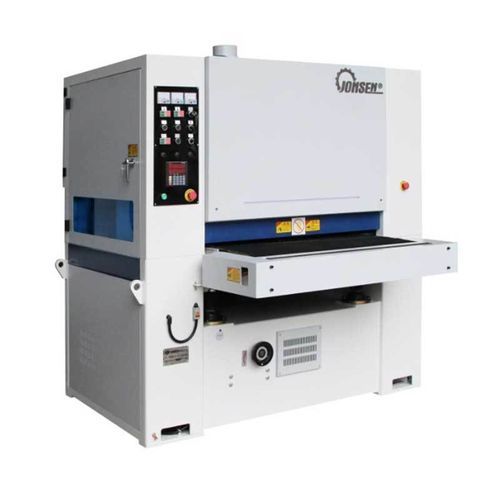

Belt deburring machine SG1030-NG+JS

abrasive beltedge roundingsanding

Product brief
The machine features a dedicated workstation layout combining one narrow abrasive belt head and one wide abrasive belt head. This dual-station design targets efficient removal of molten and piercing slags and edge deburring on laser-cut parts. The narrow belt concentrates on edges and contours with limited surface contact to prolong belt life, while the wide belt covers full surfaces to remove stubborn slags and perform general surface sanding and deep scratch removal.

Applications
Steel parts batch processing after laser cutting

HIGHLIGHTS

• Feed-through configuration for continuous batch processing
• Four-column synchronized lifting conveyor table for high positioning precision
• Patented automatic tracking system for the wide abrasive belt
• Reduced metal dust exposure when used with an appropriate dust extraction system
• Critical rollers dynamically balanced; high-speed rated bearings installed
• Patented magnetic conveyor with adjustable magnetic force

Optional configuration

• Crossbelt station with de-slagging blocks for heavier slags from plasma or flame cutting
• Crossbelt station with abrasive block to further radius edges of workpieces
• Integration into a production line receiving parts directly from laser cutting tables

Common consumables
Narrow and wide abrasive belts in various types, sizes and grits

Ideal parts
Batch-processed steel parts after cutting operations

Technical specifications

• Model: SG1030-NG+JS
• Maximum working width: 1000 mm
• Working thickness range: 1–70 mm
• Conveyor speed: 1–5 m/min
• Weight: 2200 kg
