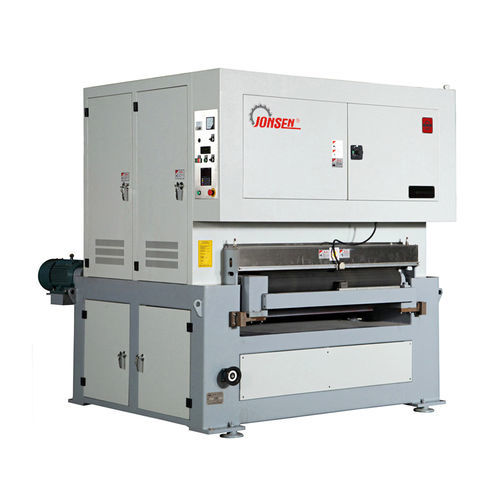

Polishing finishing line SG1300-JS/SG1300-2JS

finishingstream finishingindustrial

Product Brief
One or more units of SG1300-JS/SG1300-2JS machine(s) are able to form a stainless steel sheet/coil surface finishing machine line. It utilizes wide abrasive belt heads with oil to achieve optimal surface finishing results (most commonly No.4 and Hairline). The oil/wet operation provides a more delicate and smooth finish compared to dry operation machines. The complete line typically includes one or multiple SG1300 series machines, connecting roller conveyors between machines, a degreasing machine, a cleaning and drying machine, and a surface laminating machine. For coil-to-coil finishing lines the configuration is composed of decoiler, straightener, and coiler. Two-side finishing is available with an additional “bottom sanding” SG1300 series machine.

Applications

• Stainless steel sheet and coil surface finishing for decorative and functional surface types (e.g., No.4, Hairline).

Machine characteristic overview

• Oil / wet operation for improved surface quality.
• No.4 and Hairline (HL) machines:
  • Large diameter rubberized contact wheels for optimal surface contacting.
  • SKF precision bearings for performance and durability.
  • Jonsen patented automatic wide abrasive belt tracking mechanism.
• Rubberized roller-type conveyor to provide smooth feeding.
• Smooth and smart integration between SG1300 machine(s) and degreasing, cleaning, drying, and laminating machines to achieve one-pass processing.
• Real-time process monitoring system is available.

Technical Datasheet
Maximum working width available: 1300 / 1600 / 2100 mm
Line speed to the wide abrasive belt (depend on the type of surface finishing): 2-18 m / min
Working thickness range: 0.5-40 mm
Perimeter of the wide abrasive belt: 2200 / 2620 mm
Surface finishes available: No.4, Hairline (HL)

Caractéristiques / spécifications techniques

• Model(s): SG1300-JS / SG1300-2JS
• Maximum working width available: 1300 / 1600 / 2100 mm
• Line speed to the wide abrasive belt: 2-18 m/min (depending on finishing type)
• Working thickness range: 0.5 - 40 mm
• Perimeter of the wide abrasive belt: 2200 / 2620 mm
• Surface finishes available: No.4, Hairline (HL)
• Operation mode: Oil / wet operation
• Key features: large diameter rubberized contact wheels; SKF precision bearings; patented automatic wide abrasive belt tracking; rubberized roller-type conveyor; integration for one-pass processing; optional two-side (with bottom sanding) and coil-to-coil configuration
