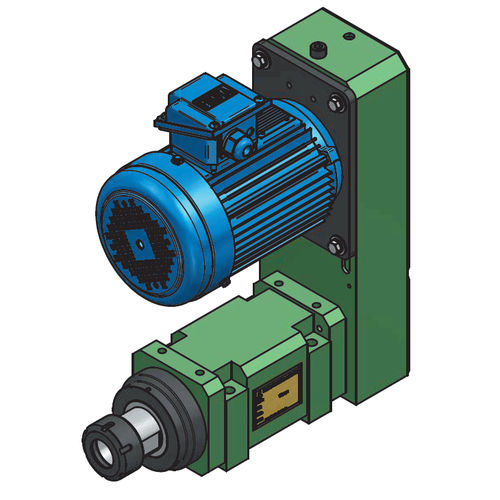

Drilling spindle S45H-NT30machiningmotorized
Add to favorites
Compare this product
Characteristics
- Function
- drilling, machining
- Drive system
- motorized
- Rotational speed
Min.: 400 rpm
(2,513.2741 rad.min-1)Max.: 8,000 rpm
(50,265.4825 rad.min-1)- Diameter
Min.: 1 mm
(0 in)Max.: 20 mm
(0.8 in)
Description
Max. Drilling capacity : 20mm
Speed range at 50Hz : 450 - 6000
Max. allow speed : 8000
Spindle Taper : ER40 / NT30
Standard 3-phase AC Motor Power: 0.75kW or 1.5kW
AC Induction Motor protection IP 54
Belt driven at fixed speed and incorporate a timing or Poly-V belt
Optional DELTA servo motor at variable speeds
