Milling motor spindle SM45-NT30drillingmachiningtapping
Add to favorites
Compare this product
Characteristics
- Function
- milling, drilling, machining, tapping, boring
- Drive system
- motorized
- Spindle mount
- ISO 30
- Rotational speed
Max.: 8,000 rpm
(50,265.48 rad.min-1)Min.: 50 rpm
(314.16 rad.min-1)2,500 rpm
(15,707.96 rad.min-1)- Diameter
Max.: 20 mm
(0.8 in)Min.: 1 mm
(0 in)10 mm
(0.4 in)
Description

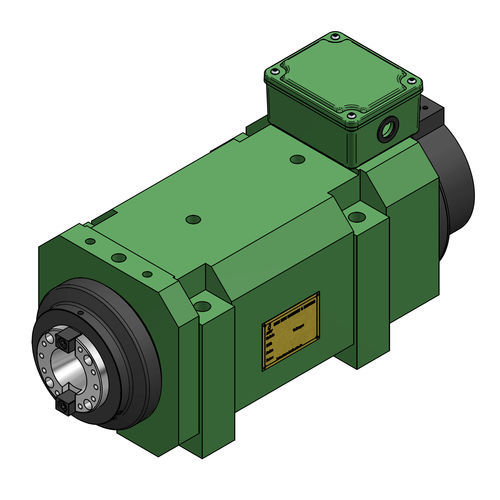

SM45 Built-in motor spindle is designed for drilling, tapping, boring and milling applications. This product is suitable to install with a servo driven slide for accurate positioning and feeding, saving space requirement and increasing your efficiency and productivity.
． Servo motor 1.5kW is included
． Spindle taper NT30 is available
． Drive is included
． Encoder is included
． DELTA C2000 PLUS Drive features with Speed Adjustable/Torque Compensated/Excellent Orientation at low RPM
