Precision boring head S150

heavy-dutyfor metalworking

Overview

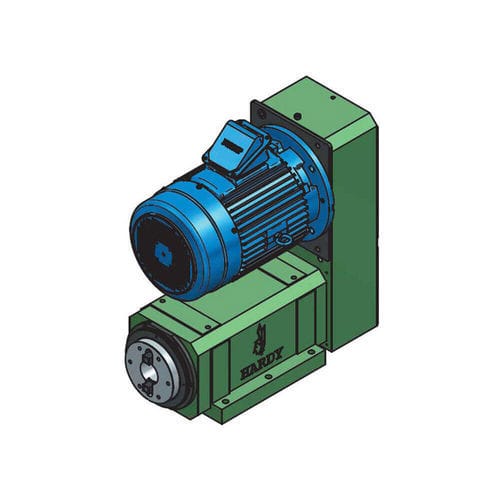

The S150 spindle housing is an FC30 casting, precision bored and honed. The spindle shaft is forged from alloy steel and undergoes high-frequency heat treatment. Precision bearings from SKF (Germany), NSK (Japan) and Taiwan TPI are fitted to maintain spindle nose accuracy at 0.002 mm or less. Maximum spindle speed is 1800 RPM, suitable for mounting on CNC servo slides or hydraulic feed tables for heavy machining applications.

Features

• Standard 3-phase AC motor 15 kW included; optional up to 45 kW
• Belt-driven fixed-speed configuration with timing belt
• Spindle taper NT50 available
• Option for servo-driven variable-speed operation
• AC induction motor protection rating IP54
• Gearbox motor available upon request

Specification drawings / Additional images
Dimensional and specification drawings are provided as high-resolution images in the product documentation (technical drawings available in the product specification section).

Technical specifications

• Model: S150
• Spindle housing material: FC30 casting, precision bored and honed
• Spindle material: alloy steel with high-frequency heat treatment
• Bearings: SKF (Germany), NSK (Japan), Taiwan TPI precision bearings
• Spindle nose accuracy: 0.002 mm or less
• Maximum spindle speed: 1800 RPM
• Standard motor: 3-phase AC 15 kW (optional up to 45 kW)
• Drive type: belt driven with timing belt (fixed speed); option for servo-driven variable speed
• Spindle taper: NT50 available
• Motor protection rating: IP54
• Gearbox motor: available upon request
