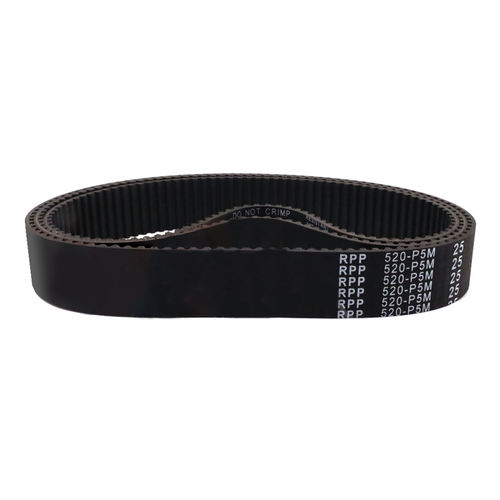

Synchronous belt RPP Synchronous Belt

trapezoidalpolypropylenerubber

The RPP Synchronous Belt is a high-performance rubber timing belt featuring an innovative arc-shaped tooth design, specifically developed for applications demanding high precision, high efficiency, and smooth operation. Its core advantage lies in the unique continuous arc structure of both the tooth tips and slots. This design eliminates stress concentration issues associated with traditional trapezoidal teeth and achieves face contact engagement with the pulley. This significantly enhances transmission performance, delivering: Ultra-high transmission efficiency (>98%) Uniform load distribution and minimal meshing impact Exceptional synchronization accuracy and backlash-free operation Low vibration operation Thanks to high-precision manufacturing processes (tooth pitch tolerance strictly controlled within 0.02mm), the RPP belt ensures perfect meshing with pulleys for precise synchronization. The belt is made from wear-resistant and chemically resistant rubber, enabling reliable operation over a wide temperature range from -25°C to +80°C. The RPP Synchronous Belt is available in three standard pitch sizes: 5M, 8M, and 14M, catering to diverse needs across industrial and automotive sectors. Its characteristics—low vibration, high efficiency, and precise synchronization—make it particularly suitable for servo systems and precision equipment. Furthermore, the product supports customization options to meet specific application requirements.
