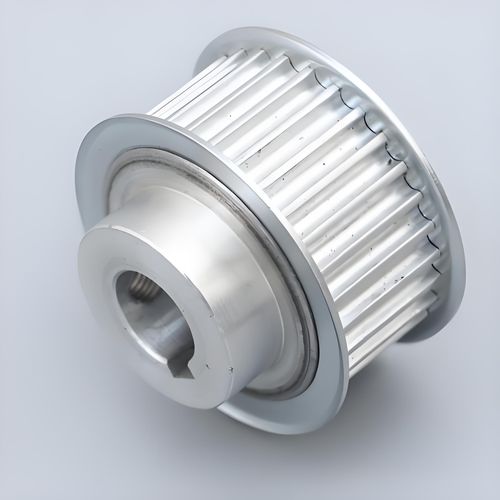

Groove pulley

synchronoustiming beltmetal

Primary Function Zero-slip power transmission through precision tooth-belt meshing, maintaining exact synchronization (±0.1° positional accuracy) in mechanical systems. Critical Engineering Features Tooth Profiles: MXL/XL (micro-drives), T5/T10 (mid-torque), HTD/AT5 (high-torque) Materials: Aluminum (lightweight), Steel (≥500Nm load), Stainless Steel (corrosive environments), Engineering Plastics (low-inertia) Flange Options: Dual-flange (>500 RPM applications), Flangeless (compact spaces) Tolerance: DIN/ISO 5296-compliant tooth machining (±0.025mm) Advantages Zero Slippage: Eliminates velocity variation in servo systems Wear Reduction: 3× belt life vs. mismatched pulleys Acoustic Control: 15-20dB lower noise than gear drives Customization: Non-standard bores (5-150mm), hub configurations, tooth counts Applications Automotive: Engine timing systems (synchronization error <0.05mm) Robotics: Articulated arm joints (10M+ cycle durability) Medical: MRI scanner components (non-magnetic variants) Additive Manufacturing: 3D printer extruders (micrometer-level precision) Packaging: High-speed conveyor synchronization (200+ cycles/min) Technical Validation Dynamic load rating: 1.8× static torque capacity Surface hardness: 60-65 HRC (steel pulleys) Runout tolerance: <0.05mm at 3,000 RPM
