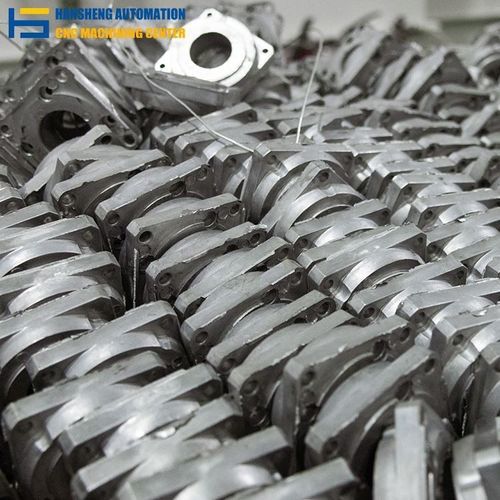

Brass machining

titaniumcarbon steelstainless steel

Custom Parts for Industrial Machinery are precision-manufactured components for OEMs, equipment builders and maintenance operations, produced with capabilities ranging from ultra-high precision finishing to large-format machining. Hansheng provides build-to-print manufacturing, advanced gear production and complex-geometry solutions for a wide variety of industrial applications.

Core capabilities

• Ultra-high precision machining: standard CNC turning/milling to ±0.01 mm, precision grinding to ±0.005 mm, and ultra-mirror finishing to ±0.002 mm.
• Advanced gear manufacturing: in-house skiving and hobbing (Kashifuji KPS30, Ningjiang YK3610Ⅳ) producing internal and external gears with gear profile inspection.
• Large-scale horizontal machining: heavy-duty horizontal machining centers capable of processing workpieces up to 2100 mm x 1060 mm for monolithic bases and large housings.
• Complex geometry solutions: Seibu Wire EDM (M50B) and 5-axis milling for intricate contours, hardened steels and conductive materials.
• Reverse engineering and CAD file support: typical accepted file formats include STEP (.stp), IGES (.igs), X_T, SolidWorks and 2D PDF drawings with tolerances.

What we make

• Power Transmission
  Precision spur gears, helical gears, internal ring gears (via skiving), splines and drive shafts.
• Structural Components
  Large machine bases, gearbox housings, mounting brackets and side plates (up to ~2 meters).
• Moving Parts
  Guide rails, rollers, bushings and high-tolerance spindles.
• Fluid & Control
  Hydraulic manifolds, valve blocks and pneumatic components requiring airtight finishes.
• Mold & Die Components
  Core inserts and cavities with complex 3D surfaces.

Materials

• Steel: Carbon Steel (1045), Alloy Steel (4140, 4340), Tool Steel (D2, A2 - hardened).
• Stainless Steel: 304, 316L, 17-4PH.
• Aluminum: 6061-T6, 7075 (aerospace grade).
• Yellow metals: Brass, Bronze (aluminum bronze / phosphor bronze for bushings/gears).
• Engineering plastics: PEEK, Delrin (POM), Nylon, PTFE.
• Specialty materials: Titanium, Inconel (available upon request).

Technical specifications

• Max processing size: Milling up to 2100 mm x 1060 mm (Horizontal Center); turning: contact for specific diameter/length limits.
• Tolerance standards: Ultra-Mirror finish ±0.002 mm; Precision Grinding ±0.005 mm; Standard CNC ±0.01 mm.
• Key equipment: Kashifuji KPS30 (Skiving), Ningjiang YK3610Ⅳ (Hobbing), Seibu M50B (WEDM), large horizontal machining centers.
• Surface finishes: As-machined, anodizing, black oxide, electroplating, heat treatment (carburizing / nitriding for gears), polishing.
• Quality assurance: ISO-certified processes, CMM inspection and gear profile inspection reports.
• File formats supported: STEP (.stp), IGES (.igs), X_T, SolidWorks, PDF (2D drawings with tolerances).
