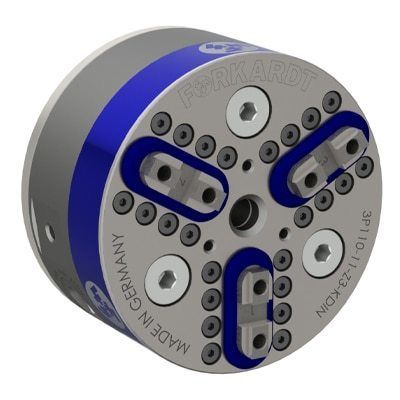

Grinding workpiece clamping chuck 3P110

for turning applicationsmanual tighteninghigh-precision

Product overview
The 3P110 is a curve-plate-controlled manual chuck optimized for grinding and precision turning. Its sealed body with additional seals on the base jaws prevents lubricant leakage and ingress of grinding dust, ensuring stable clamping conditions. The KDIN jaw mounting provides a universal interface for a wide range of jaws, and an optional precise simultaneous chuck is available for pre‑machined clamping jaws. With a repeatability of <0.005 mm, the 3P110 delivers reliable, deformation‑free clamping for consistent workpiece results.

Features & Benefits

• Sealed design to retain lubricant and exclude grinding debris
• Repeatability <0.005 mm for process stability
• Universal KDIN jaw mounting for easy jaw interchange
• Low maintenance design to reduce operating costs
• Compatibility with existing tooling using the same mounting style

Applications

• Precision turning
• Cylindrical grinding

Technical specifications

• Product type: Curve-plate-controlled manual chuck for grinding
• Main applications: Grinding and precision turning
• Sealed body with additional seals on base jaws to retain lubricant and prevent grinding dust ingress
• Jaw interface: KDIN jaw mounting (universal)
• Optional: Precise simultaneous chuck for pre-machined clamping jaws
• Repeatability / repeat accuracy: <0.005 mm
• Designed for low maintenance and reduced operating costs
• Compatible with tooling from chucks using the same mounting style
