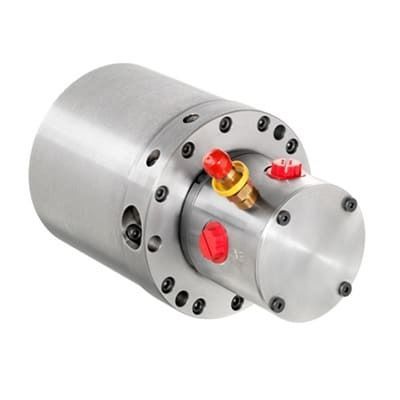

Hydraulic cylinder HRC

rotarywith through rodpiston

Product Overview
The HRC Rotating Hydraulic Cylinder is based on the Logansport design and intended for standard industrial workholding and spindle/chuck configurations. Units can be modified for specific applications or fully custom engineered on request. The cylinder is offered with multiple piston arrangements and optional ports/features to integrate coolant, air or sensing systems.

Advantages

• Simple inlet design configurable as fixed or reciprocating
• Constant hydraulic flow
• Maximum operating pressure: 80 Bar
• Rotational capability up to 8000 RPM
• Standard built-in trapping maintains pressure and chuck clamp in case of power loss
• Viton seals retain hydraulic fluid or compressed air while allowing internal movement and support
• Flexible piston configurations: single, tandem, through-bore (open center), or duplex

Technical Features

• Third Port – optional additional port in the inlet assembly for coolant or air access through the piston rod
• Fast Acting – increased volume flow options reduce stroke cycle time; cycles under one second are possible on a 2" stroke
• Rotating Hollow Tube Trip Rod – optional rotating hollow rod enables passage of air, coolant or oil through the cylinder when combined with a rotary union; trip dog can be fitted for proximity stroke sensing systems
• Variable Pressure Feature – Hi‑Lo pilot port allows on‑the‑fly clamping force changes during cutting cycles to reduce part distortion and improve roundness control

Applications

• Suitable for horizontal, vertical or inverted workholding and spindle/chuck arrangements

Technical Specifications

• Design origin: Logansport-based rotating hydraulic cylinder
• Maximum operating pressure: 80 Bar
• Maximum rotational speed: up to 8000 RPM
• Seal type: Viton seals
• Piston configurations: single, tandem, through-bore (open center), duplex
• Optional third port for coolant/air through piston rod
• Optional rotating hollow tube trip rod for media passage with rotary union
• Fast-acting design available for high flow / short stroke cycles (sub-1 second on 2" stroke)
• Variable pressure (Hi‑Lo) capability for on-the-fly clamping adjustments
