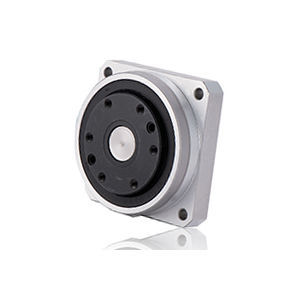

Strain wave gearhead CSF-2UPcoaxialsolid-shaft0.5 - 1 Nm
Add to favorites
Compare this product
Characteristics
- Type
- strain wave
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 1 - 5 Nm, 10 - 20 Nm, 20 - 50 Nm, 5 - 10 Nm, 0.5 - 1 Nm, 50 - 100 Nm
- Performance
- precision, zero-backlash
- Applications
- for automation, for medical applications
- Other characteristics
- compact, for robotics, miniature, flange
- Rotational speed
3,500 rpm
(21,991.15 rad.min-1)- Gear ratio
30 unit, 50 unit, 100 unit
Description
The CSF-2UP gear units are the newest models in the CSF mini-series lineup. These new gear units have an ultra-flat configuration with high-moment stiffness. Harmonic Drive® gear units are housed, zero-backlash gears with a precision output bearing. The new models are lightweight and extremely flat. Thanks to a cross roller bearing used at the output flange, the CSF-2UP gearheads offer high-moment stiffness. The CSF-2UP mini gearheads are ideally suited for small robots or equipment requiring an ultra-compact solution.
Catalogs
Harmonic Drive LLC
80 Pages
