Cream separator DBA series

Product overview
DBA centrifugal separators are industrial units for separating water‑oil emulsions, removing non‑fat solids and isolating butter oil (ghee / Anhydrous Milk Fat - AMF). Units can be configured as concentrators (skimmers) or purifiers. For butter oil production the feed is phase‑inverted via a homogenizer before entering the separator, enabling final butter oil concentrations above 99.5%.

Key features

• Stainless steel hygienic construction suitable for food processing
• Submerged feed pipe to improve separation efficiency
• Designed for Cleaning In Place (CIP)
• Fast and effective discharge system for solids and water
• High separation efficiency for fat concentration and purification
• Available skid‑mounted for plug‑and‑play installation

Models and technical specifications

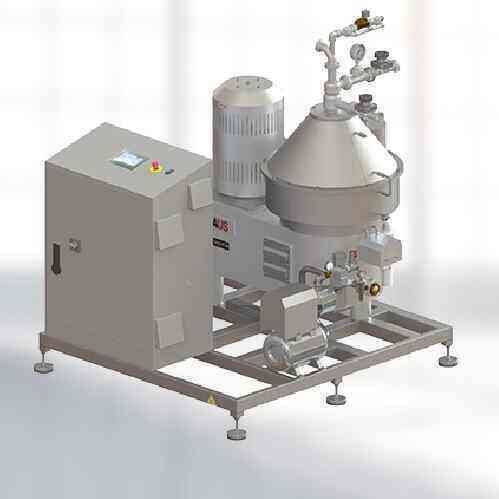

DBA 5422-P35 SEPARATOR WITH SKID UNIT
TECHNICAL SPECIFICATIONS
INSTALLED MOTOR POWER: 22 kW
DIMENSIONS (L×W×H): 1740×2390×2130 mm
WEIGHT: 1400 kg

DBA 5432-P40 SEPARATOR WITH SKID UNIT
TECHNICAL SPECIFICATIONS
INSTALLED MOTOR POWER: 22 kW
DIMENSIONS (L×W×H): 1810×2170×2230 mm
WEIGHT: 1400 kg

Note
*HAUS reserves the right to modify the specifications stated here without prior notice to the customer.

Technical characteristics / specifications

• Series: DBA Series
• Function: Centrifugal separation for water‑oil emulsion, removal of non‑fat solids and non‑fat materials
• Main application: Concentration and purification of butter oil (ghee / Anhydrous Milk Fat) from processed milk, cream or butter
• Target concentration: >99.5% butter oil after processing
• Configurations: Concentrator (skimmer) or purifier
• CIP: Ready for Cleaning In Place
• Construction: Stainless steel hygienic design
• Feed: Special submerged feed pipe
• Discharge: Fast and effective discharge system
• Delivery: Skid‑mounted, ready to operate
• Example installed motor power: 22 kW
• Example dimensions and weights: DBA 5422-P35 — 1740×2390×2130 mm; 1400 kg. DBA 5432-P40 — 1810×2170×2230 mm; 1400 kg
