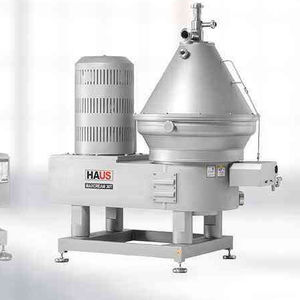

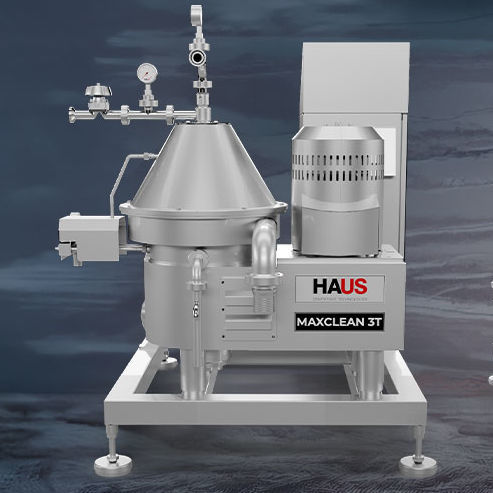

Whey cream separator MAXCLEAN

automatic

Overview
MAXCLEAN centrifugal separators are designed for inline cleaning of raw milk and whey. Equipped with a centripetal feed pump and automatic partial and total discharge, the MAXCLEAN Series operates as a clarifier to remove solids and biological contaminants during milking and milk processing.

Versatile Application Areas
Besides primary milk cleaning, MAXCLEAN units are used for whey clarification after cheese production and for preparatory steps in protein recovery processes.

Separation Performance
MAXCLEAN separators separate organic and inorganic solids such as bristles, straw fragments and soil. Their centrifugal design combined with controlled discharge ensures rapid and consistent particle removal to support product safety and downstream processing.

Advanced Cleaning Capabilities
In addition to particulate removal, MAXCLEAN reduces somatic cell counts and lowers spore load, providing an effective pre-treatment before pasteurization or further dairy processing.

Application / Function / Benefit

• Milk cleaning | Contaminant removal (bristles, straw, soil) | Improved product safety and processing reliability
• Whey cleaning | Removal of organic/inorganic solids | Better feedstock for protein recovery
• Somatic cell reduction | Decrease somatic cell count | Enhanced hygiene level
• Spore reduction | Lower spore concentration | Effective pre-treatment prior to thermal treatment

Features

• Stainless steel construction suitable for dairy environments
• Submerged feed pipe designed for gentle product handling
• Ready for Cleaning In Place (CIP) integration
• Fast and effective automatic partial and total discharge system
• Hygienic design to meet dairy industry standards
• Efficient centrifugal separation
• Optional skid-mounted delivery for quick installation and commissioning

Technical specifications

• MAXCLEAN 5T — Installed motor power: 11 kW; Dimensions (L x W x H): 1500 x 1830 x 1850 mm; Weight: 1300 kg
• MAXCLEAN 10T — Installed motor power: 15 kW; Dimensions (L x W x H): 1500 x 1830 x 1850 mm; Weight: 1300 kg
• MAXCLEAN 15T — Installed motor power: 18.5 kW; Dimensions (L x W x H): 1500 x 1830 x 1850 mm; Weight: 1300 kg
• MAXCLEAN 25T — Installed motor power: 30 kW; Dimensions (L x W x H): 1730 x 2400 x 2010 mm; Weight: 1600 kg
• MAXCLEAN 40T — Installed motor power: 45 kW; Dimensions (L x W x H): 1940 x 1210 x 2280 mm; Weight: 2650 kg
