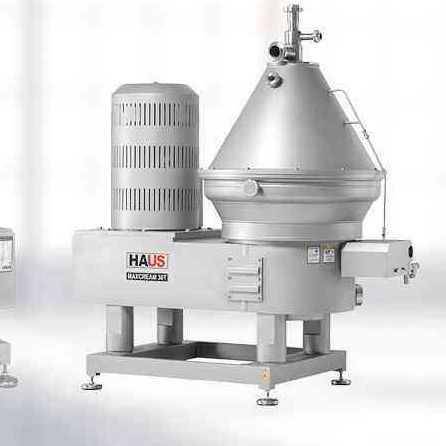

Whey cream separator MAXCREAM

Product overview
MAXCREAM separators are centrifugal separators configured as concentrators (skimmers) for efficient, fast and hygienic separation of fat from milk. They allow adjustment to produce standard or high cream concentrations or to separate fat completely from whey. MAXCREAM units process milk gently, leaving minimal fat residues in the skimmed milk under optimal conditions. Cream concentration is set via counter-pressure valves at the phase outlets; concentrations between 40% and 65% are achievable. Precise standardization is possible using the MILKOTUNE unit in combination with the counter-pressure valves.

Key features

• Hygienic stainless steel construction
• Submerged feed pipe design for gentle product handling
• Ready for Cleaning In Place (CIP)
• Fast and effective solid discharge with minimal product retention
• High separation efficiency for both skimming and removal of contaminant solids
• Available skid-mounted for easy installation and commissioning

Product models and technical specification details

MAXCREAM 5T — TECHNICAL SPECIFICATIONS
Installed motor power: 7.5 kW
Dimensions (L × W × H): 1250 × 1510 × 1500 mm
Weight: 500 kg

MAXCREAM 10T — TECHNICAL SPECIFICATIONS
Installed motor power: 15 kW
Dimensions (L × W × H): 1500 × 1830 × 1940 mm
Weight: 1300 kg

MAXCREAM 15T — TECHNICAL SPECIFICATIONS
Installed motor power: 18.5 kW
Dimensions (L × W × H): 1500 × 1830 × 1940 mm
Weight: 1300 kg

MAXCREAM 20T — TECHNICAL SPECIFICATIONS
Installed motor power: 30 kW
Dimensions (L × W × H): 1730 × 2400 × 2090 mm
Weight: 1600 kg

MAXCREAM 30T — TECHNICAL SPECIFICATIONS
Installed motor power: 45 kW
Dimensions (L × W × H): 1940 × 1210 × 2350 mm
Weight: 2650 kg

Notes
*HAUS reserves the right to modify the specifications stated here without prior notice to the customer.

Technical specifications / Characteristics

• MAXCREAM 5T — Installed motor power: 7.5 kW; Dimensions: 1250 × 1510 × 1500 mm; Weight: 500 kg
• MAXCREAM 10T — Installed motor power: 15 kW; Dimensions: 1500 × 1830 × 1940 mm; Weight: 1300 kg
• MAXCREAM 15T — Installed motor power: 18.5 kW; Dimensions: 1500 × 1830 × 1940 mm; Weight: 1300 kg
• MAXCREAM 20T — Installed motor power: 30 kW; Dimensions: 1730 × 2400 × 2090 mm; Weight: 1600 kg
• MAXCREAM 30T — Installed motor power: 45 kW; Dimensions: 1940 × 1210 × 2350 mm; Weight: 2650 kg
• Cream concentration range: 40%–65% (adjustable via counter-pressure valves and MILKOTUNE standardization unit)
• Designed for gentle milk processing with minimal fat residues; efficient solid discharge with minimal product content
• Hygienic stainless steel design; CIP-ready; available skid-mounted
