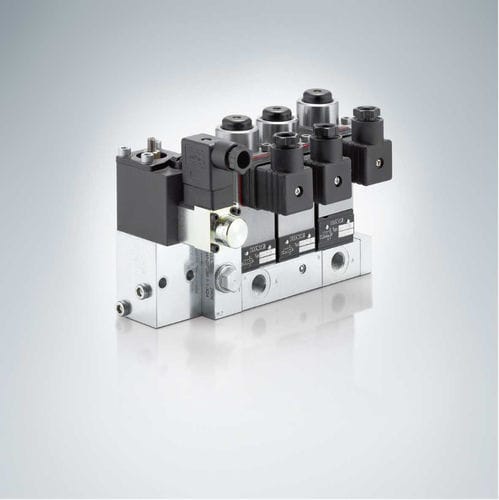

Poppet hydraulic directional control valve BW series

solenoid-operated2/2-way3/2-way

The valve bank type BWN or BWH comprises several directional seated valves of type WN or WH that are connected in parallel. The directional seated valves are ball valves, and have zero leakage when closed. They are flange-mounted on sub-plates. These sub-plates are clamped between the initial block (P and R port) and the end plate via tension rods. Pressure switches or pressure-limiting valves can be integrated into the pump lines and/or load lines. 2/2 and 3/2-way directional seated valves are available. Combined, these are also available as 3/3 and 4/3-way directional seated valves. The valve bank can be mounted directly on compact hydraulic power packs using connection blocks. Features and advantages Adapter plates for flange-mounting on pump units or combining with other valve types Additional functions can be integrated into the sub-plate, e.g. pressure-limiting valves, pressure switches and more Energy-efficient solutions in connection with hydraulic accumulators Intended applications Machine tools (chipping and non-chipping) Rubber and plastic machinery Mining machinery (incl. oil production) Rubber and plastics machinery
