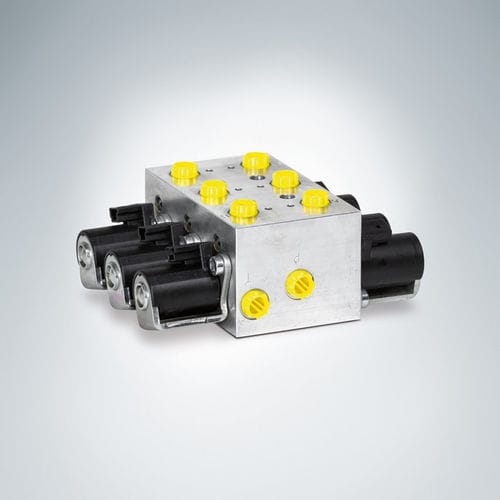

The directional seated valves are available as chained valves in a valve bank. This facilitates the combination of different circuit symbols or actuation types in order to save space, and such systems can also be used to actuate independent consumers.
The SLC1 chained valves are a combined design consisting of seated valves and dual check valves. This allows holding hydraulic actuators in position for long periods of time.
You can integrate T-throttles into the block to adjust actuator movements. The magnetic plugs used are connectors (Tyco Quadlok MQS or FEP flat plugs) used in the automotive industry. The low flow rates of up to 1 lpm allow setting up mini-hydraulics system solutions.
Features and benefits:
Short switching times
Requires little space thanks to compact design
Energy-efficient thanks to low power consumption
Hold hydraulic actuators in position for long periods of time
Intended applications:
Operating tables
Rescue stretchers
Floor-lock systems
Automotive
