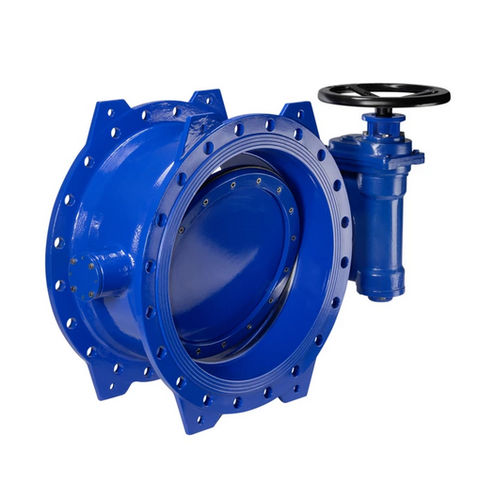

Butterfly valve 9881

with handwheelfor waterdouble-flange

Butterfly valve suitable for pipelines and water treatment stations. Working temperature according to EN 1074. Easy handling due to double eccentricity and well matched gearboxes. Overlay welded and microfinished seat optimizing lifetime of valve and minimum resistance to flow. Design features No. 9881 Double eccentric, mounted disc Standard version incl. operator: Wormgearbox and handwheel Design according EN 593 Prepared for actuator Face-to-face dimension according EN 558 – 1 SERIES 14, 13 OPTIONAL Flange connection dimensions according to EN 1092-2 Material | Technical features Body seat made of stainless steel, welded and microfinished Body and disc made of ductil iron, epoxy powder coated Sealing ring made of elastomer Retaining ring made of steel, epoxy powder coated Bearing system made of bronze - self lubricating Handwheel made of cast iron, epoxy powder coated
