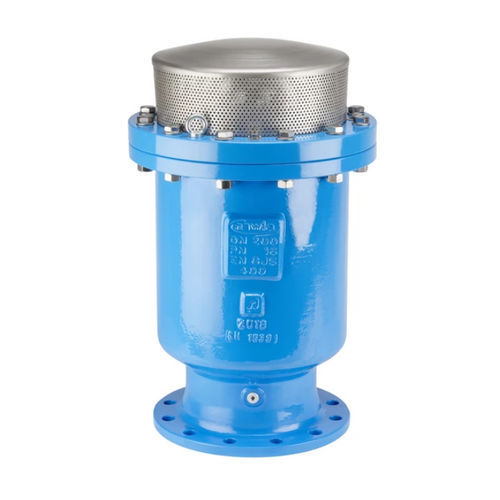

Air relief valve 9842Kvacuumfor pipelinescast iron
Add to favorites
Compare this product
Characteristics
- Fluid
- air
- Applications
- vacuum, for pipelines
- Body material
- cast iron
- Other characteristics
- compact, threaded, flange
- Controlled pressure
10 bar, 16 bar, 25 bar, 40 bar
(145 psi, 232.1 psi, 362.6 psi, 580.2 psi)- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Weight
Max.: 98 kg
(216.05 lb)Min.: 16.6 kg
(36.6 lb)
Description
Air release outlet in NOMINAL SIZE (large opening cross-section according to the flange size).
Flange according to EN 1092 (DN 50 also available with 2" threaded connection).
Efficient vacuum protection through high ventilation performance.
Optimal ventilation without early closure owing to very high air outlet speeds when filling the pipes or reservoir.
Effective protection against water hammers with high air release speeds thanks to the 2-stage ventilation system.
Consistently reliable ventilation of air pockets under working pressure.
Compact structure, low volume, and low weight.
Robust and reliable technology.
The body is made of cast iron and coated with high-quality epoxy powder.
