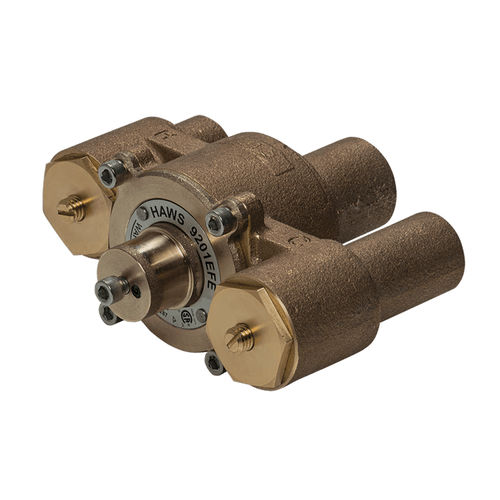

Temperature control thermostatic valve 9201EFE AXION®

brassfor water3-way

Model 9201EFE Emergency Valve (patent pending) thermostatically mixes hot and cold water to provide a safe fluid supply for emergency eyewash equipment. Additionally, to ensure a fail-safe water supply for emergency eyewash stations, a series of cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet (1.52 to 2.44 m) downstream for the most accurate temperature measurement.) • A flow rate of 1 to 12 gpm (3.8 to 45.4 L) for better temperature control across the operating range • AXION's superior design and technology provide a complete safety solution for increased victim comfort. • Lowest internal pressure drop for this class of valve (advantage where supply pressure is low) • Wax based thermostat technology for fast response time with proven highly reliable temperature control • Highest Cold Water Bypass flow rate in the industry (83% of rated tepid flow rate) • Modular brass design with internal check stops • Over-sized valve seats resist failures caused by foreign matter • A new and efficient shuttle design eliminates valve sticking • A custom funnel design improves temperature control at low flow rates • Outlet temperature is factory set to 85® F (29® C). • Tempered water: High temperature limit is factory set to 90® F (32® C). • Cold water by-pass valves are closed during normal operation, regardless of flow rate.
