Oil cooler ACIairfor hydraulic systemsfor hydraulic applications
Add to favorites
Compare this product
Characteristics
- Material
- air, oil
- Applications
- for hydraulic applications, for hydraulic systems
- Other characteristics
- with heat exchanger, air-cooled
- Power
Max.: 3 kW
Min.: 0.2 kW
- Maximum temperature
120 °C
(248 °F)- Flow rate
Max.: 5.3 m³/s
(187.168 ft³/s)Min.: 0.5 m³/s
(17.657 ft³/s)- Pressure
16 bar, 25 bar
(232.06 psi, 362.594 psi)
Description

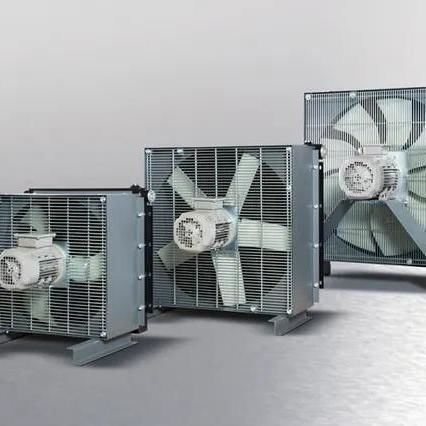

Oil air cooler ACI
HBE oil coolers are designed for high heat dissipation in hydraulic systems. The product range includes oil air heat coolers from the ACI/ACIP/ACM series, DOC® brazed plate heat exchanger, EKM oil/water cooler , as well as the compact UKC-G oil/water coolers and bellhousings with integrated oil cooling for direct mounting on pumps and gearboxes.
The oil-air cooler series ACI is an optimised heat exchanger for hydraulic systems. In-house production and intelligent storage of components enable short delivery times. By using axial fan blades of the latest design the noise level is reduced.
The ACI oil air coolers are supplied as standard with a powder-coating according to RAL 7012. The product range includes 10 sizes with oil flow from 20 to 600 litres per minute. The fan housing has been optimised to improve air flow. The air fins are insensitive to contamination.
Technical specifications
HBE oil coolers are designed for high heat dissipation in hydraulic systems. The product range includes oil air heat coolers from the ACI/ACIP/ACM series, DOC® brazed plate heat exchanger, EKM oil/water cooler , as well as the compact UKC-G oil/water coolers and bellhousings with integrated oil cooling for direct mounting on pumps and gearboxes.
The oil-air cooler series ACI is an optimised heat exchanger for hydraulic systems. In-house production and intelligent storage of components enable short delivery times. By using axial fan blades of the latest design the noise level is reduced.
The ACI oil air coolers are supplied as standard with a powder-coating according to RAL 7012. The product range includes 10 sizes with oil flow from 20 to 600 litres per minute. The fan housing has been optimised to improve air flow. The air fins are insensitive to contamination.
Technical specifications
- Operating pressure: 16 bar
- Static test pressure 25 bar according to DIN 50104
- Peak pressure resistance at 16 bar and 1 x 106 load cycles, f = 1Hz
- Max. operating temperature: 120°C
- Electric motor 230-400V, 50 Hz, IE3 (up to 0,75kW: IE2)
- Powder-coated housing
- Low sound pressure level
- Easy cleaning of the cooling elements
- Operation with all common hydraulic fluids of different viscosities (oil, HFA, HFC, etc.)
- Cooling block also available in 2-way design or with internal bypass-valve on request
