Oil cooler EKM

waterindustrialtubular

Product overview
HBE oil coolers provide heat dissipation solutions for hydraulic systems and industrial applications. Available as oil/air and oil/water heat exchangers, configurations include brazed plate, tube bundle, screw-in coolers and bellhousings with integrated coolers suitable for both stationary and mobile installations.

Available types

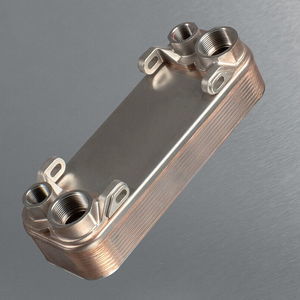

• DOC® brazed plate heat exchangers — compact, low fouling plate units for industrial hydraulics with robust connection blocks for high fastening torque.

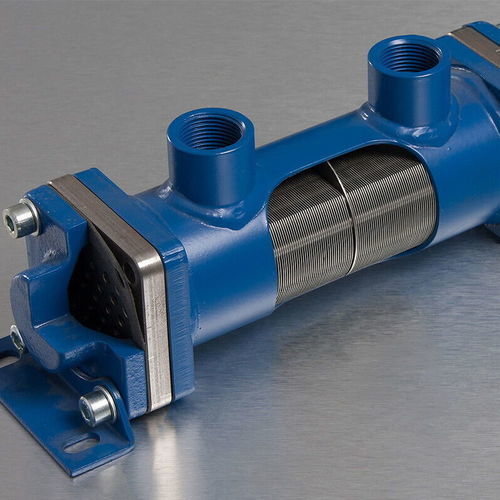

• EKM tube bundle heat exchangers — tube bundle oil/water exchangers with heat dissipation up to 1000 kW and oil flow rates up to 1200 litres.
• UKC-G screwed-in coolers — exceptionally compact screw-in design for installation in small tanks or gearbox housings.
• Bellhousing with integrated oil cooler (PTÖK series) — integrated oil/air cooling in minimal installation space; designed for high cooling output with low noise and no additional cooling circuit.
• ACM oil-air coolers — oil-air coolers designed for mobile applications.

Documentation

• HBE General Catalogue — 07/2025 — 12.91 MB — English
• Oil-air coolers for mobile applications ACM — 08/2023 — 1.31 MB — English
• Oil coolers — 04/2025 — 3.55 MB — English

Technical specifications

• Heat dissipation: up to 1000 kW (EKM series)
• Oil flow rate: up to 1200 litres (EKM series)
• Compact designs for small tanks or gearboxes (UKC-G)
• Low fouling, compact brazed-plate design (DOC®)
• Robust connection blocks allowing high fastening torque (DOC®)
• PTÖK bellhousing: integrated oil/air cooler, high cooling output, low noise, no additional cooling circuit required
