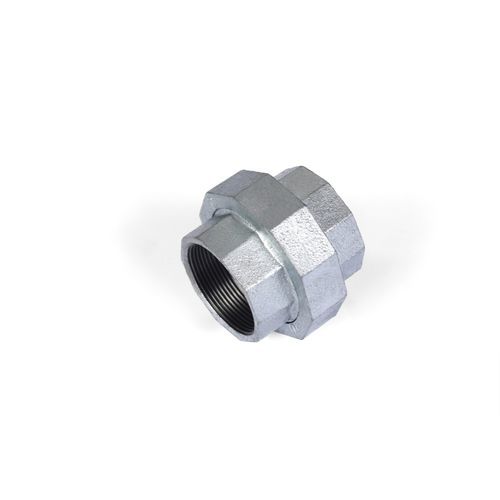

Hydraulic fitting Fig.340threadedringBSP
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- threaded, ring
- Norms
- BSP
- Material
- iron
- Other characteristics
- standard, union
- Diameter
Min.: 6 mm
(0.236 in)Max.: 150 mm
(5.906 in)- Operating pressure
25 bar
(362.59 psi)
Description
BSP Pipe Fittings Union Taper Seat
Maximum Pressure: -
25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: -
200°C (392°F)
Tensile Strength: -
350MPA
Suitable Applications: -
Water, Oil, Gas, Petro-Chemical
Product Description
The taper union extrudes each other through the inner and outer conical inclined planes to form a sealing surface. Different from flat Union, flat Union adopts plane structure and realizes sealing surface through sealing ring.
Product Parameters
Size： - 1/8”-6”(DN6-DN150)
Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures： - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification： - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Technical Data
Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: - 200°C (392°F)
Tensile Strength: - 350MPA
Hardness: - HB150 (Brinell)
Elongation Rate: - 10%
Suitable Applications: - Water, Oil, Gas, Petro-Chemical
Material: - Malleable Iron
